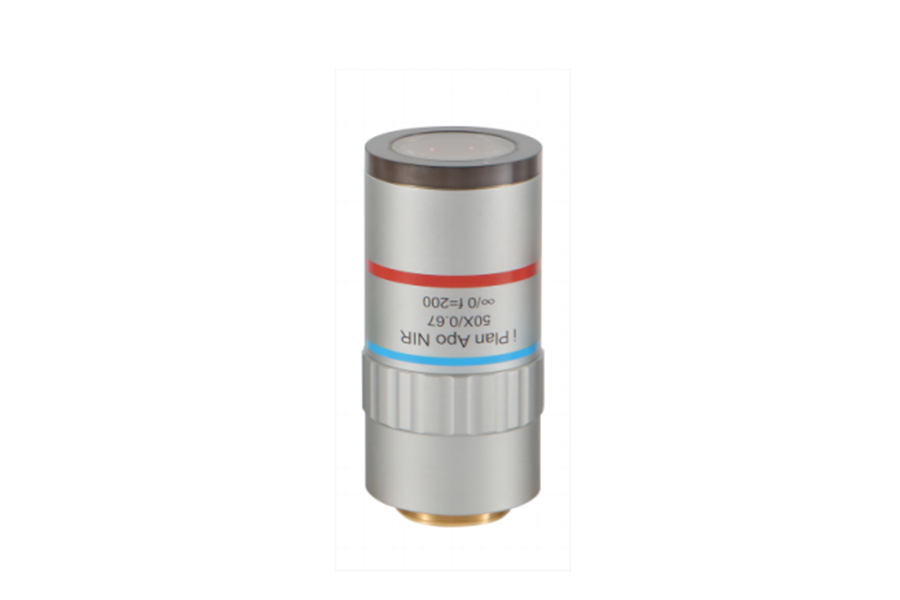

Infrared objective lens i Plan Apo HR NIR 50X (MSS-L-9051)

Commodity name： Infrared objective lens i Plan Apo HR NIR 50X (MSS-L-9051)

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

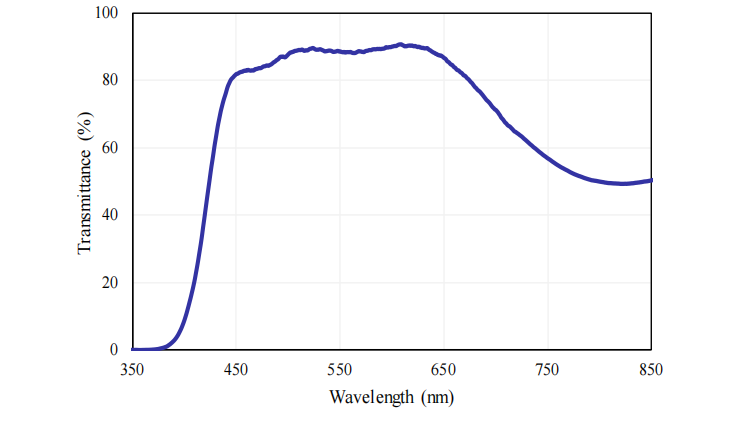

Transmittance/Wavelength

Dimensions

Specification

UPC Code	MSS-9051
Optical system characteristics	Infinitely corrected
Correction level of chromatic aberration	Apochromat
Observation method	Bright field
Magnification [X]	50
Focal length [mm]	4
Numerical aperture(NA)	0.67
Working distance(WD)[mm]	10
Resolution [um]	0.41
Field of view number	24
Focal depth±D.F.[um]	0.61
Objective field number [mm]	0.48
Parfocalizing distance [mm]	95
Type of screw thread	M26X0.706
Weight [g]	470

A microscope infrared objective lens is designed to transmit and focus infrared (IR) light for specialized imaging and analytical applications. Unlike standard optical objectives, it uses materials such as germanium, silicon, or zinc selenide to ensure high IR transmission. These lenses are widely used in thermal microscopy, semiconductor inspection, material science, and failure analysis, providing clear, high-resolution imaging beyond the visible spectrum.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!
