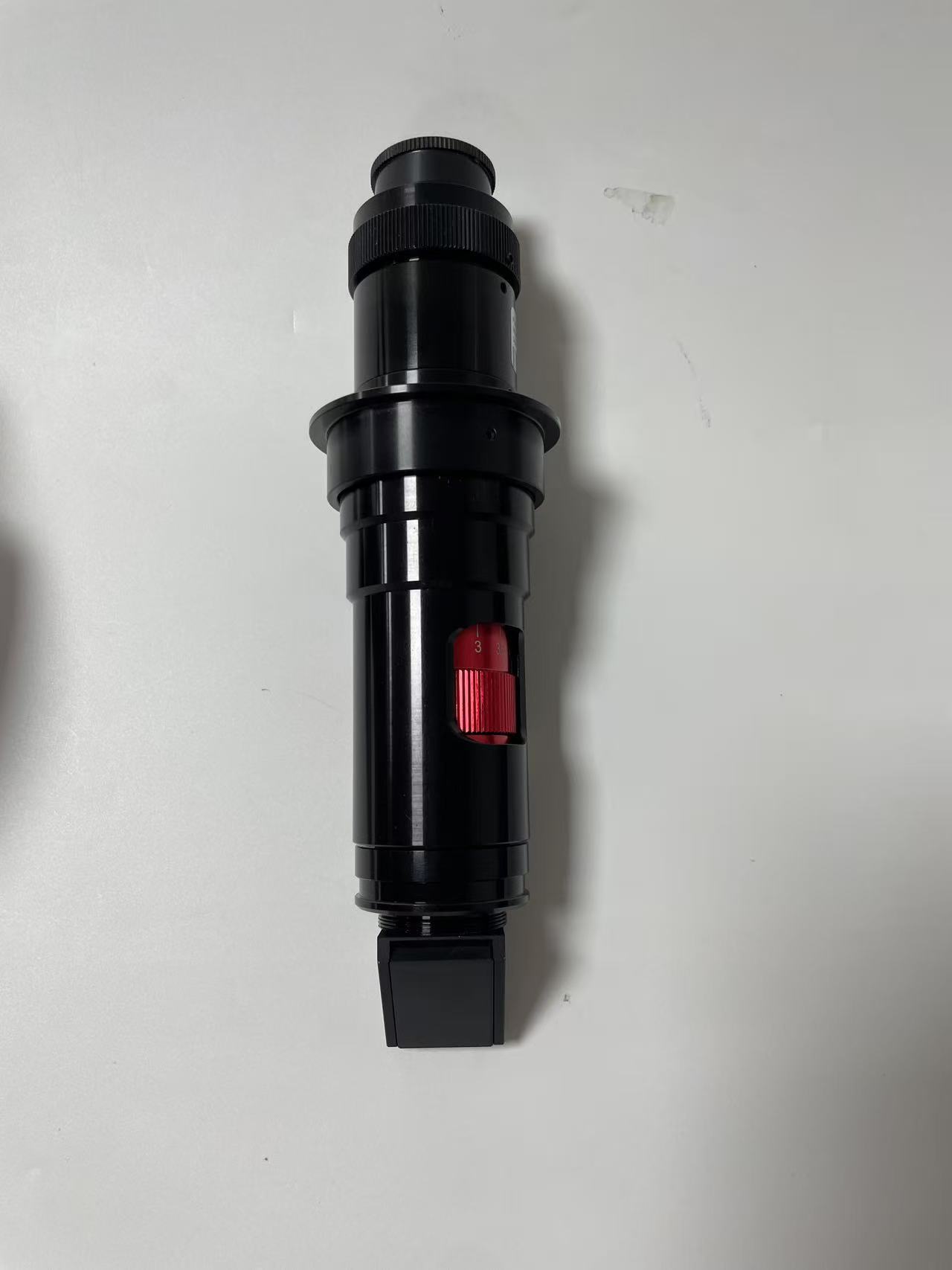

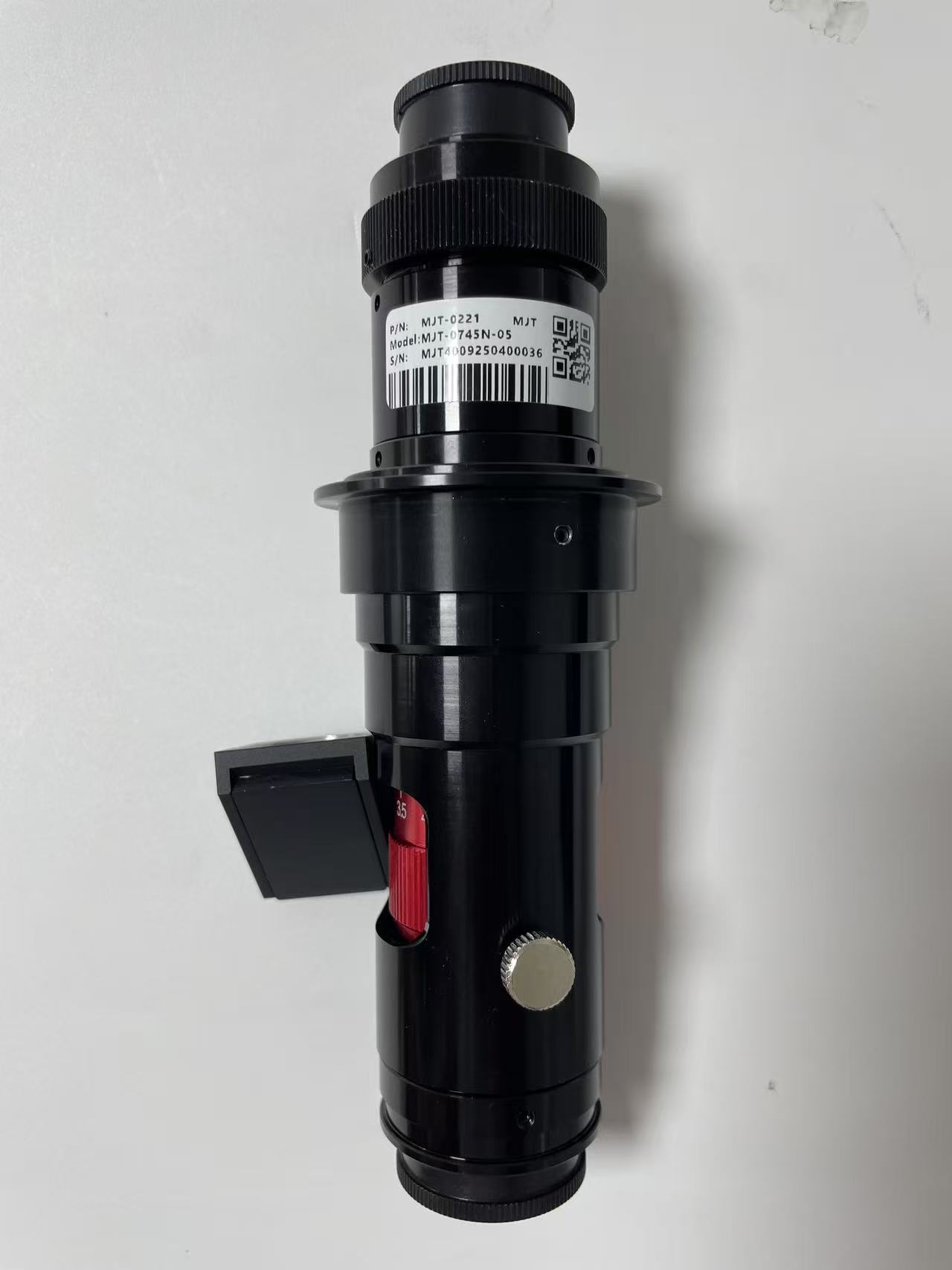

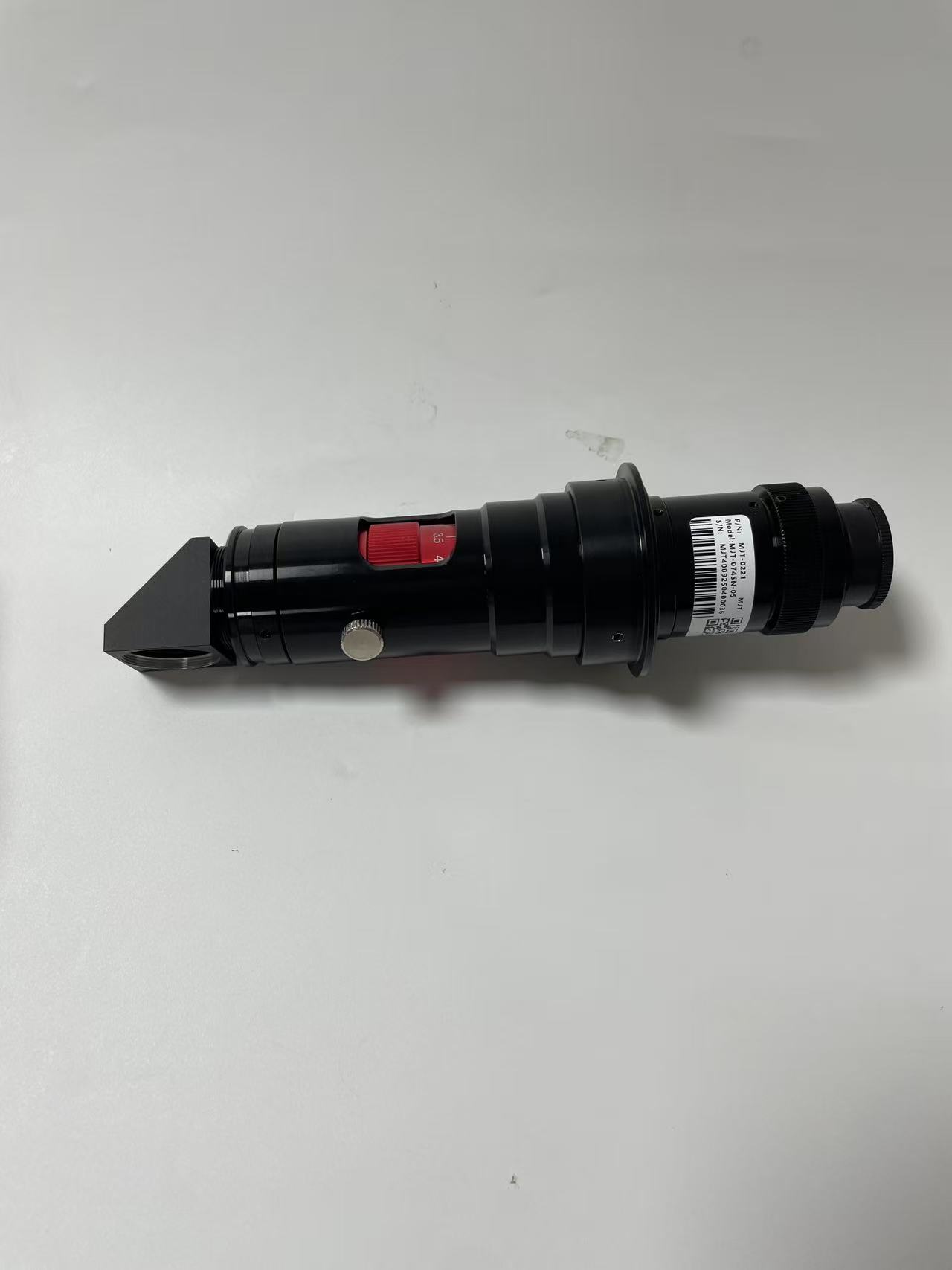

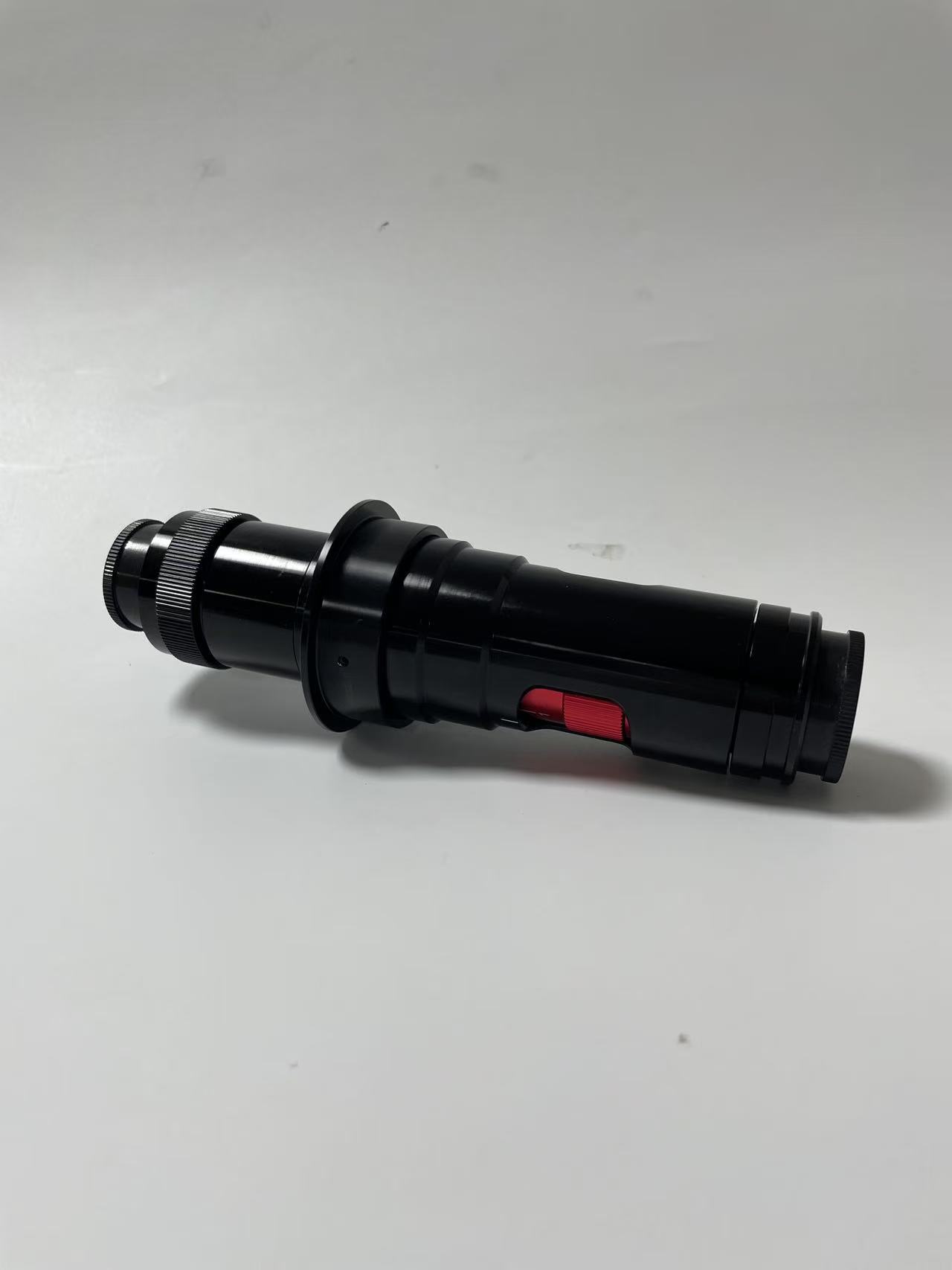

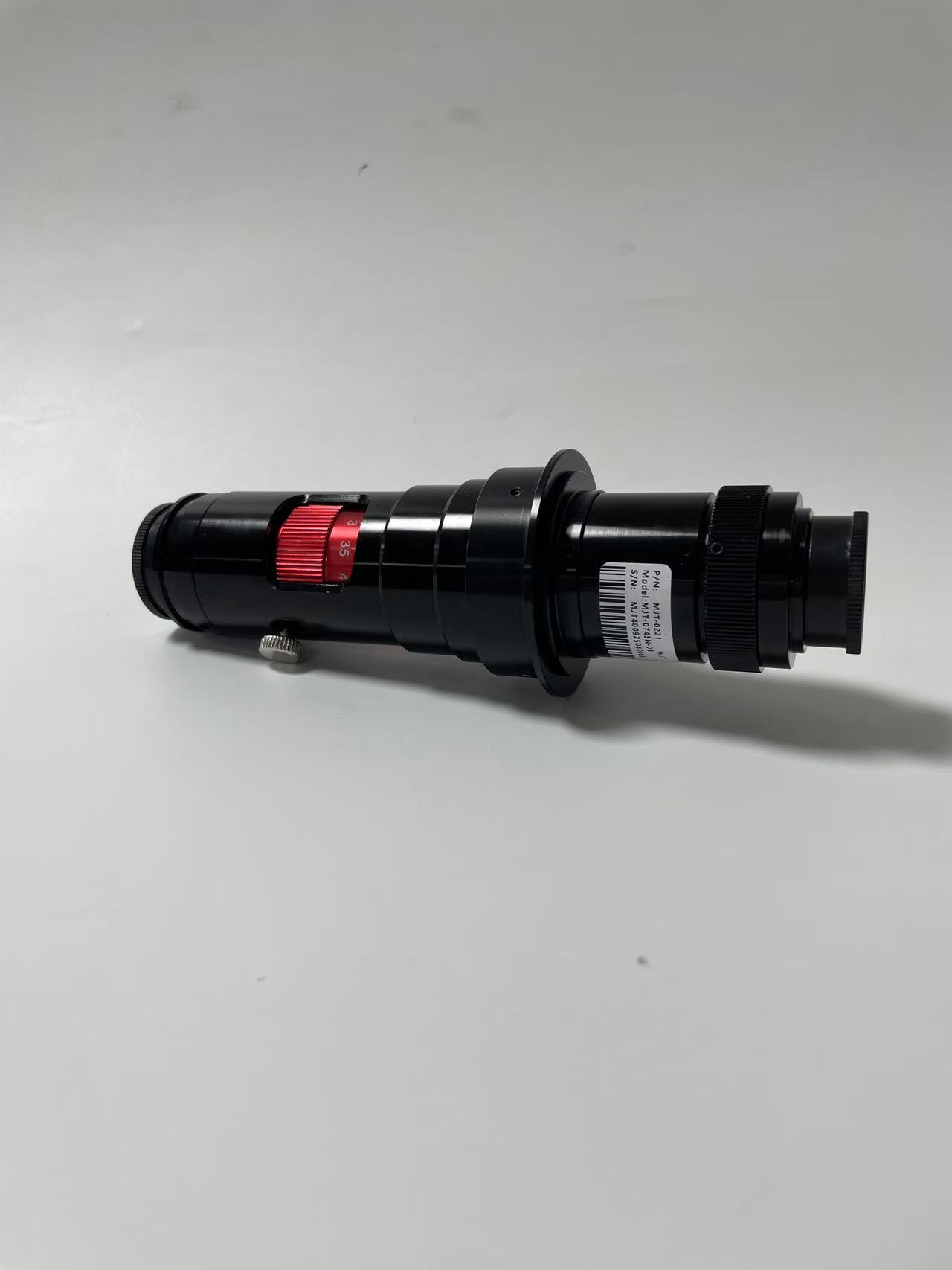

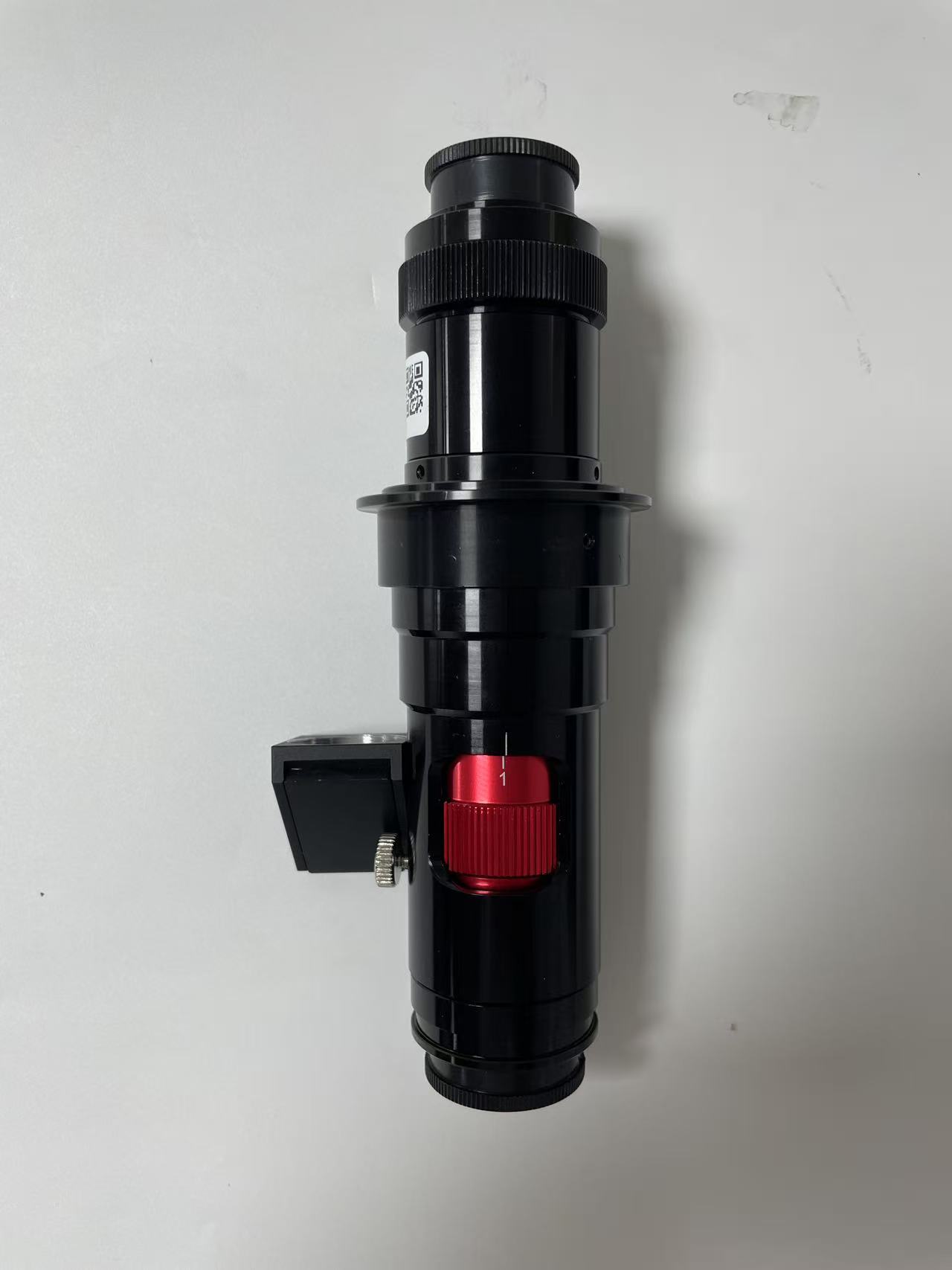

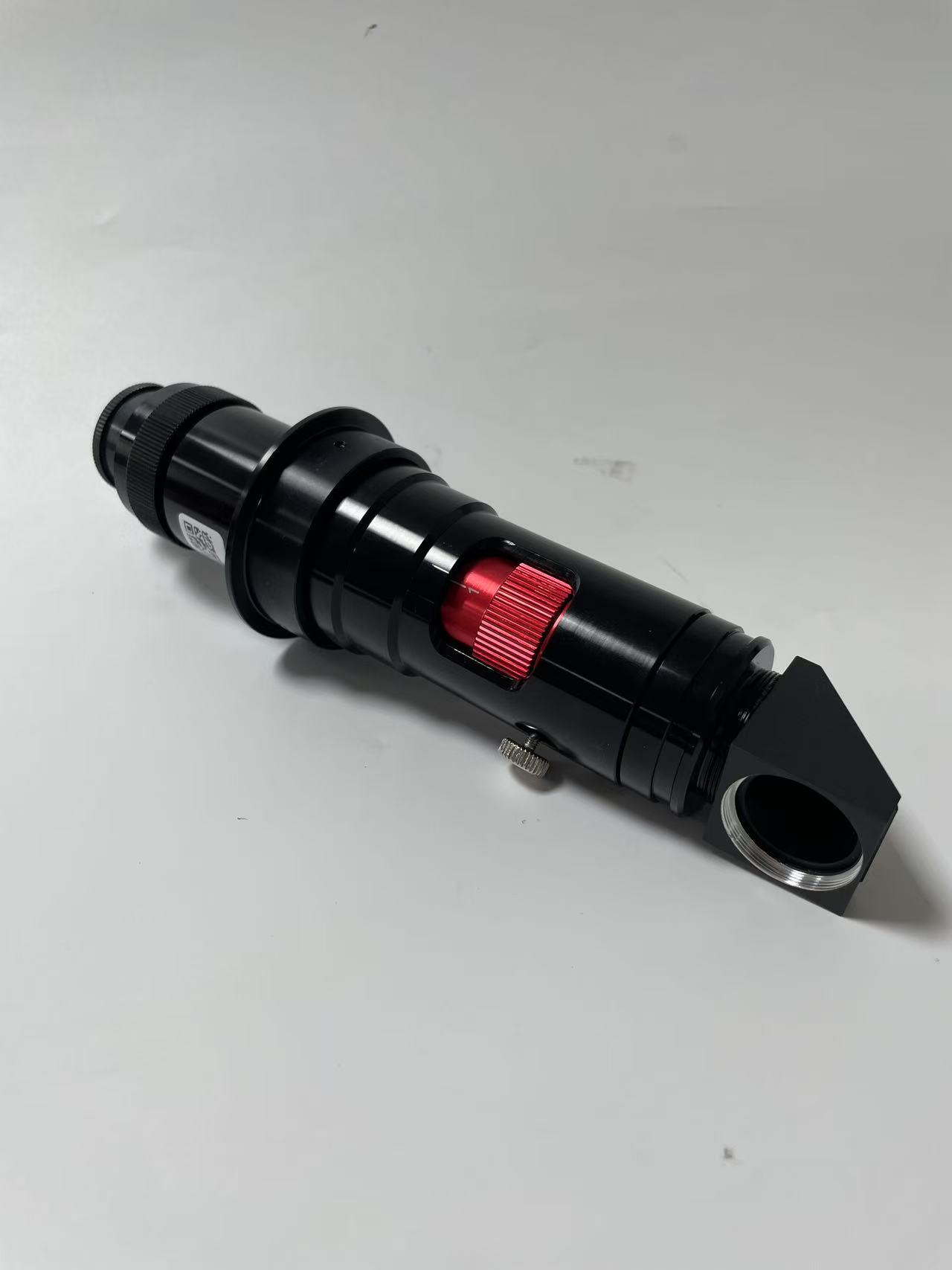

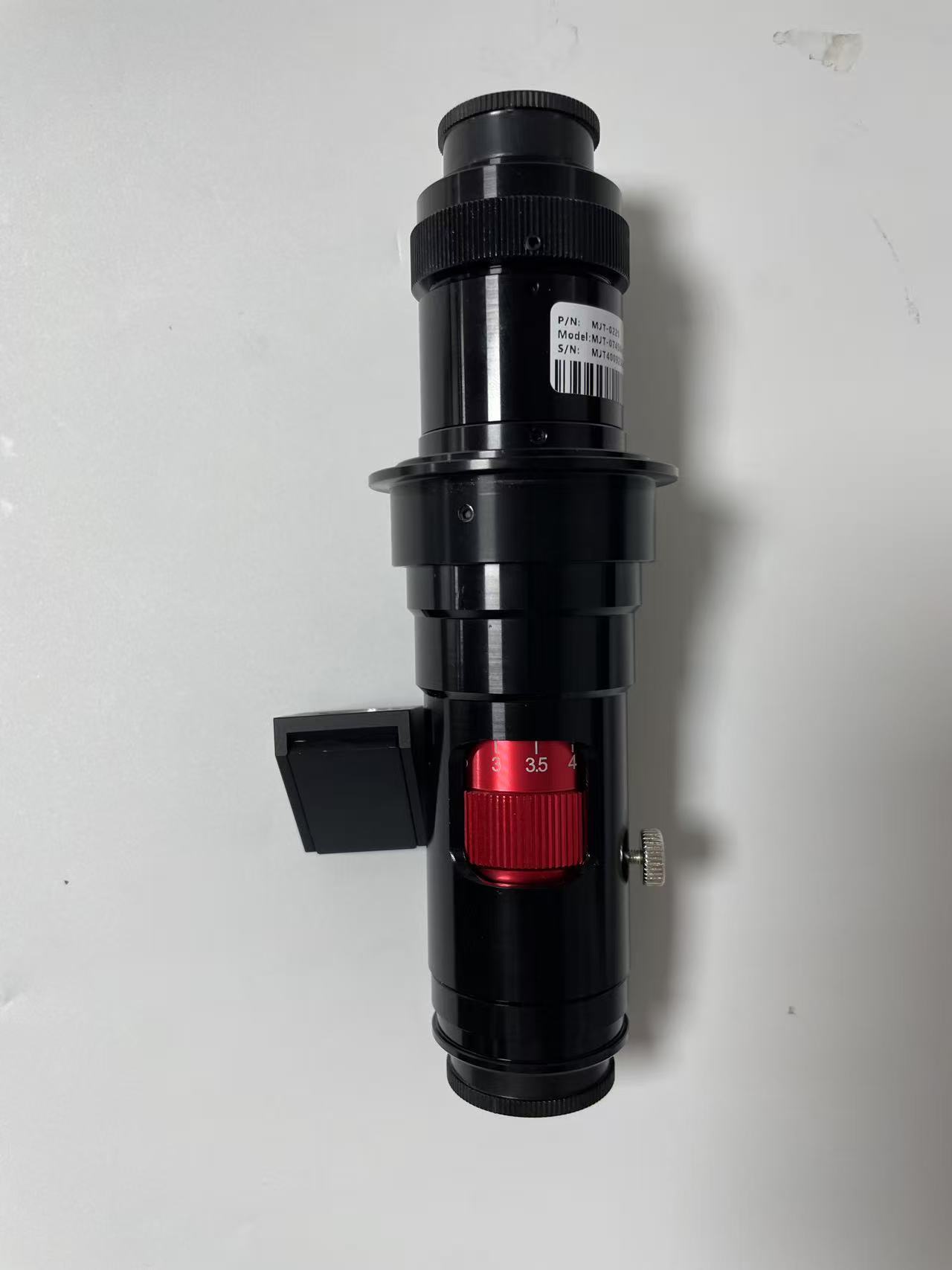

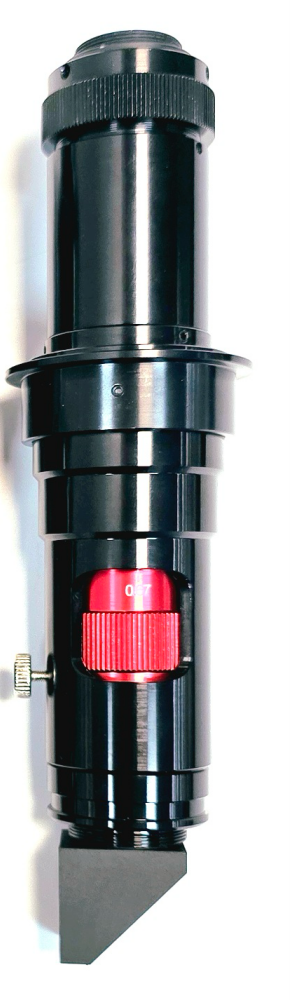

MSS-L-ZJJT01 corner lens
- Commodity name： MSS-L-ZJJT01 corner lens
- Description
-
Welcome to Shanghai Mengsheng Sheng International Trade
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~Product Application
Applied in anime, visual inspection, semiconductor, automation, electronic communication, metal detection and other industries
model
MSS-L-ZJJT01
category
Continuous zoom lens
Optical power
0.67X-4.5X
work distance
98±2mm
Equipped with 1x eyepiece
0.67X
1.0X
1.5X
2.0X
2.5X
3.0X
3.5X
4.0X
4.5X
Equipped with 0.5x eyepiece
0.335X
0.5X
0.75X
1.0X
1.25X
1.5X
1.75X
2.0X
2.25X
depth of field
1.9
0.95
0.44
0.29
0.23
0.16
0.13
0.12
0.1
NA
0.03
0.04
0.045
0.05
0.05
0.055
0.06
0.06
0.065
F.NO.
11.6
12
12.5
14
17.8
17.8
20.5
23.5
26.5
Resolution(μ m)
11.18
8
5.6
4.8
4.8
3.95
3.95
3.95
3.95
TV distortion
0.019%
0.035%
0.002%
0.003%
0.004%
0.001%
0.002%
0.002%
0.002%
Field of view size (1x eyepiece) (mm)
1/2’’
11.94
8
5.33
4
3.2
2.67
2.29
2
1.78
1/3’’
8.95
6
4
3
2.4
2
1.71
1.5
1.33
Maximum compatibility with sensors
1/1.8’’
interface
C Type
Model selection
Model
configuration
MSS-L-ZJJT01
90 ° angle prism

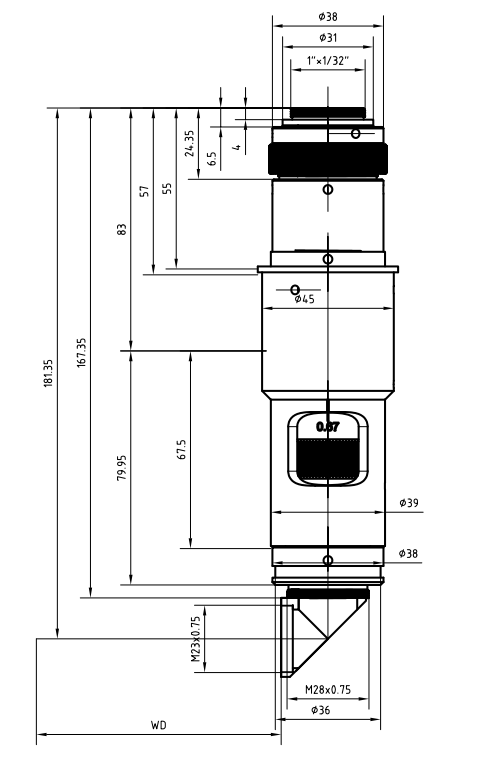

90 ° lens size:
