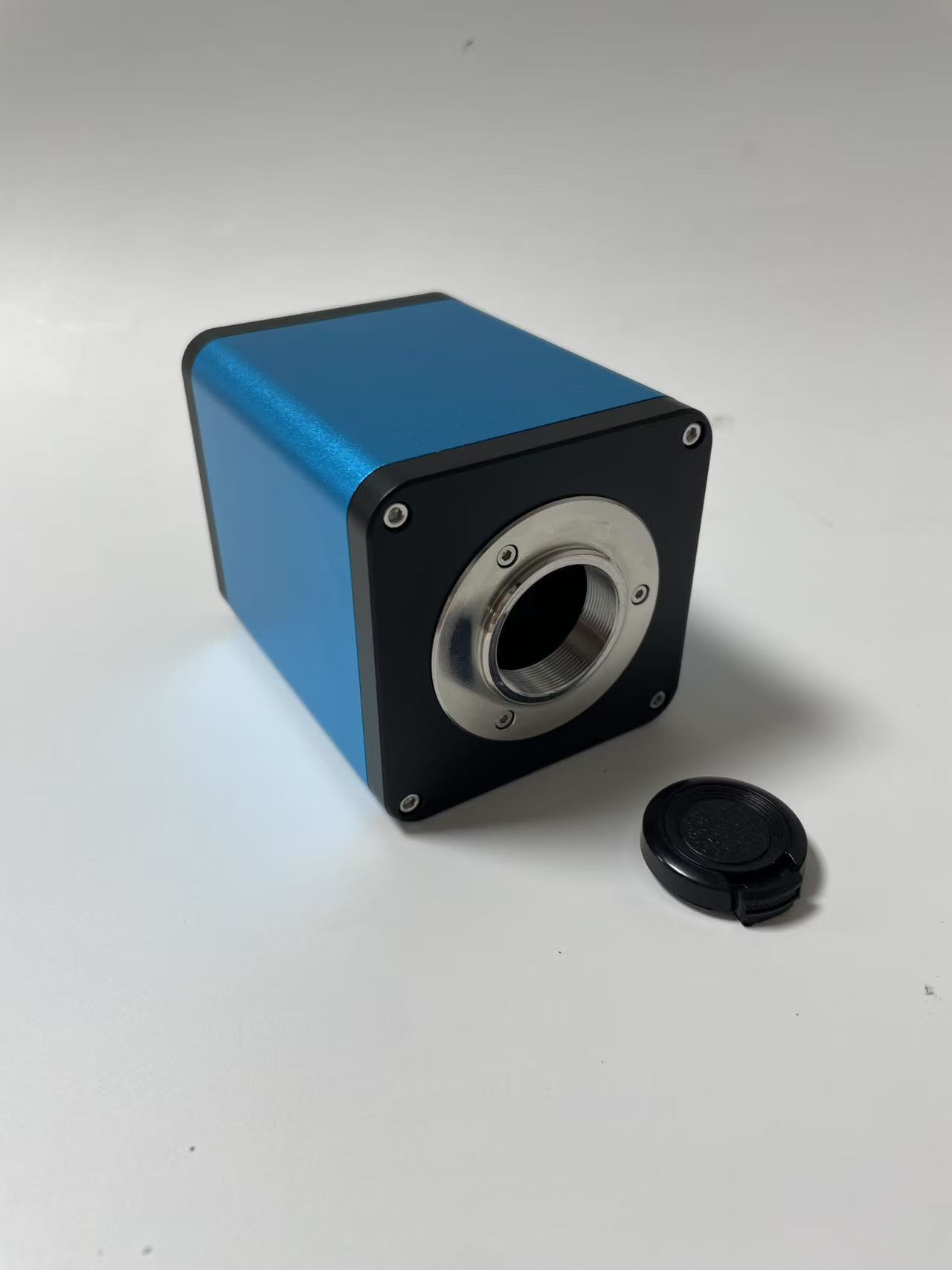

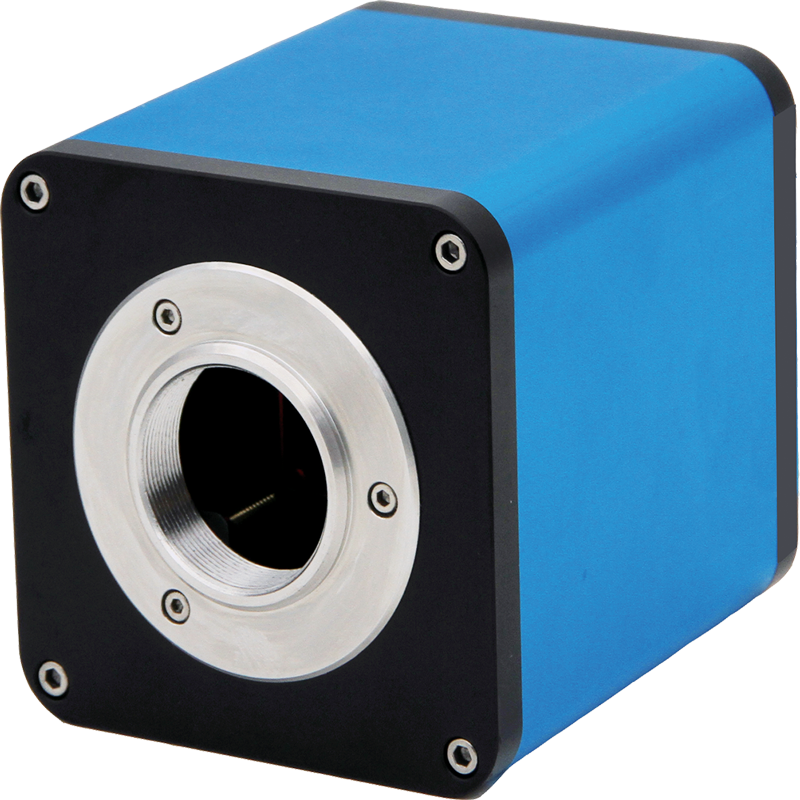

MSS-C-C313 8 million pixels automatic zoom without lens

Category:

Email:

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

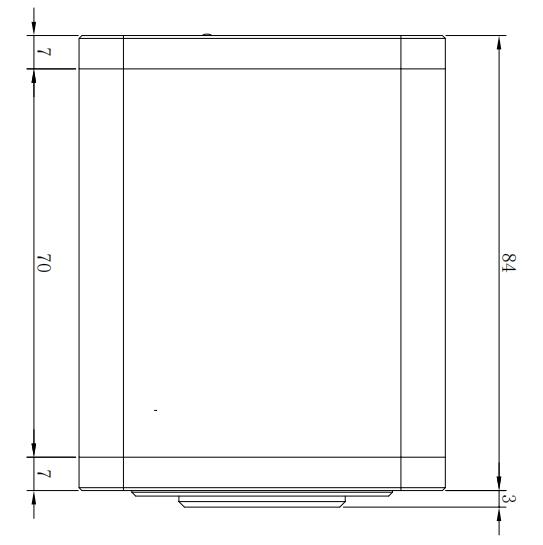

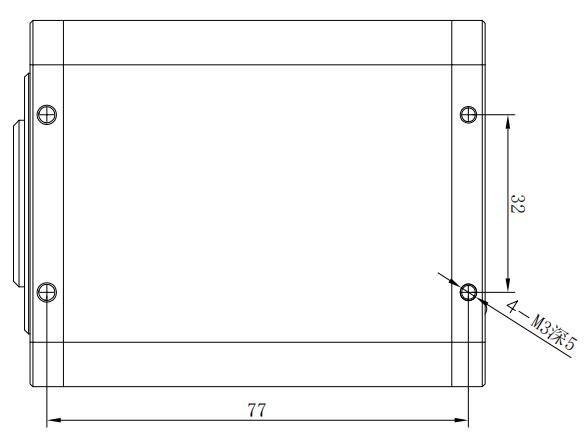

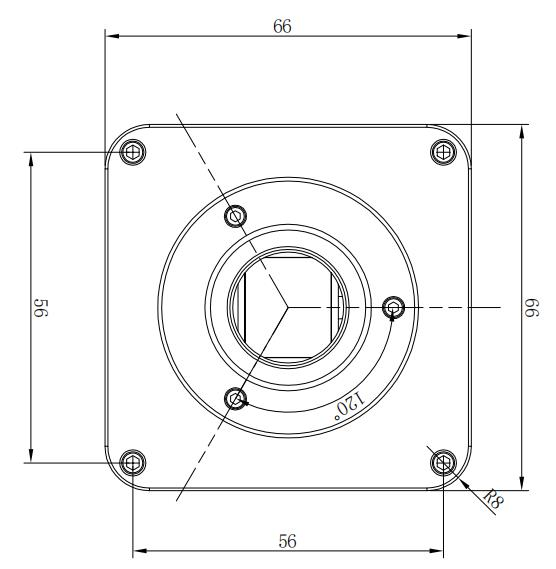

Physical Dimensions

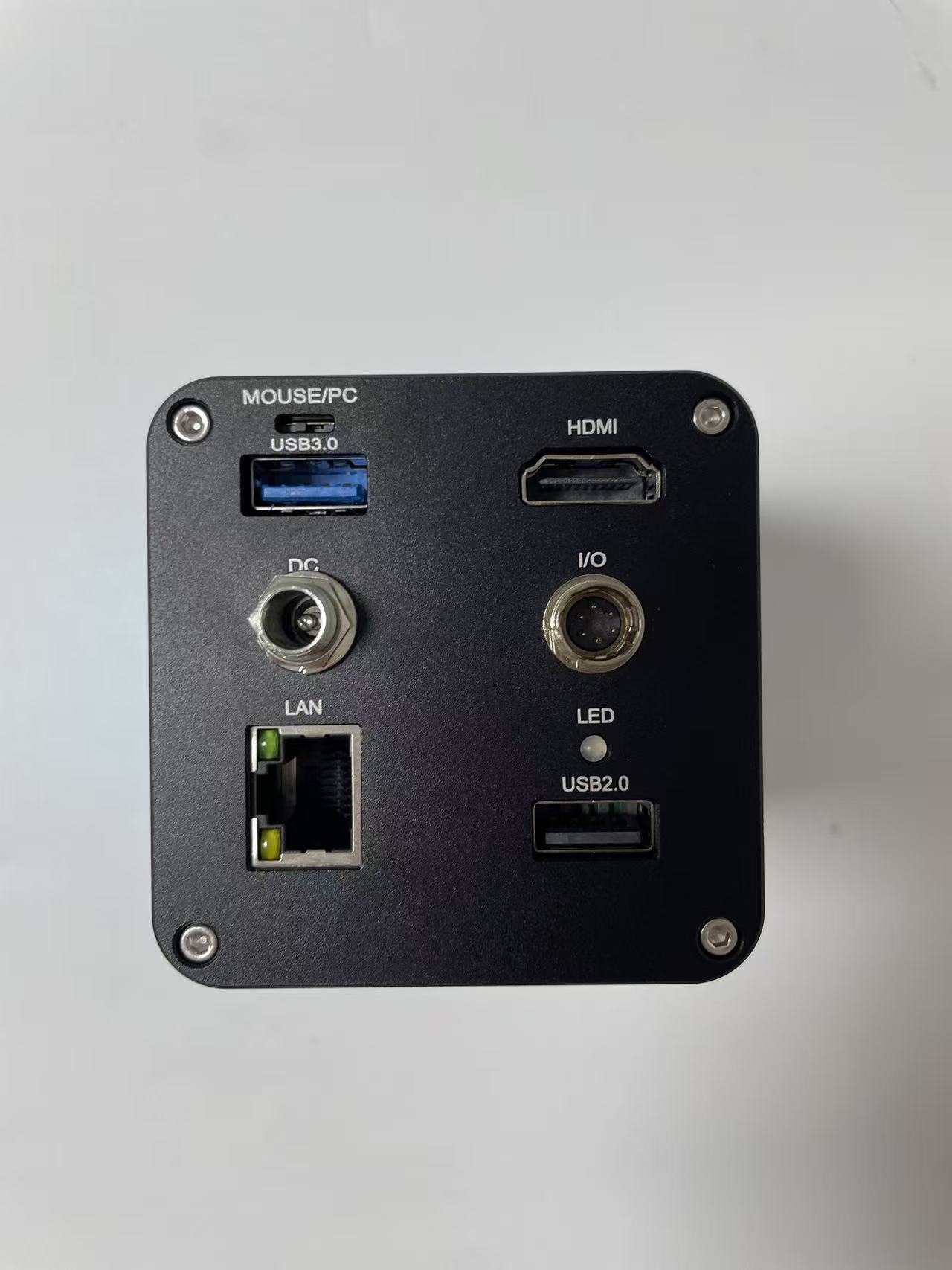

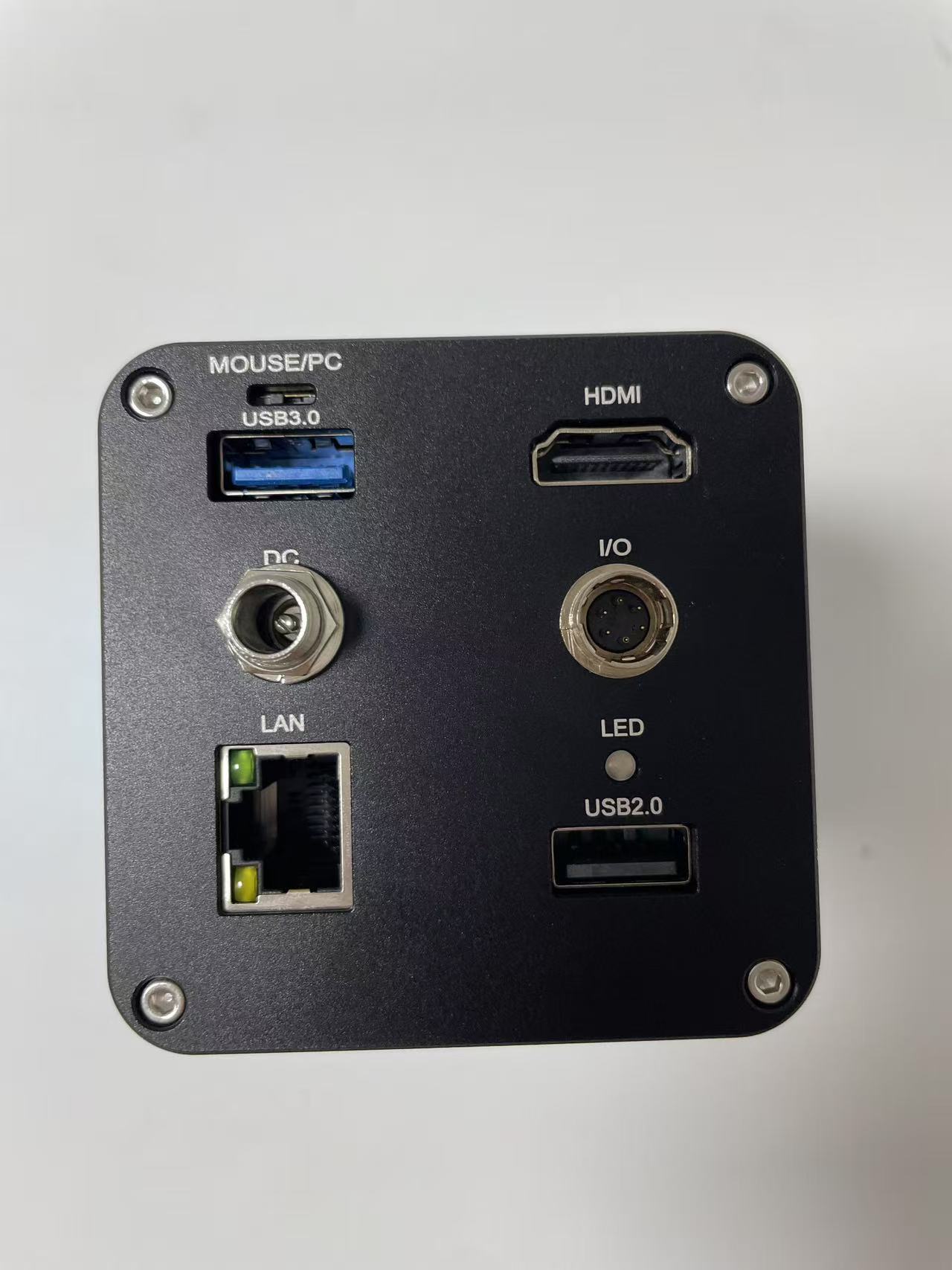

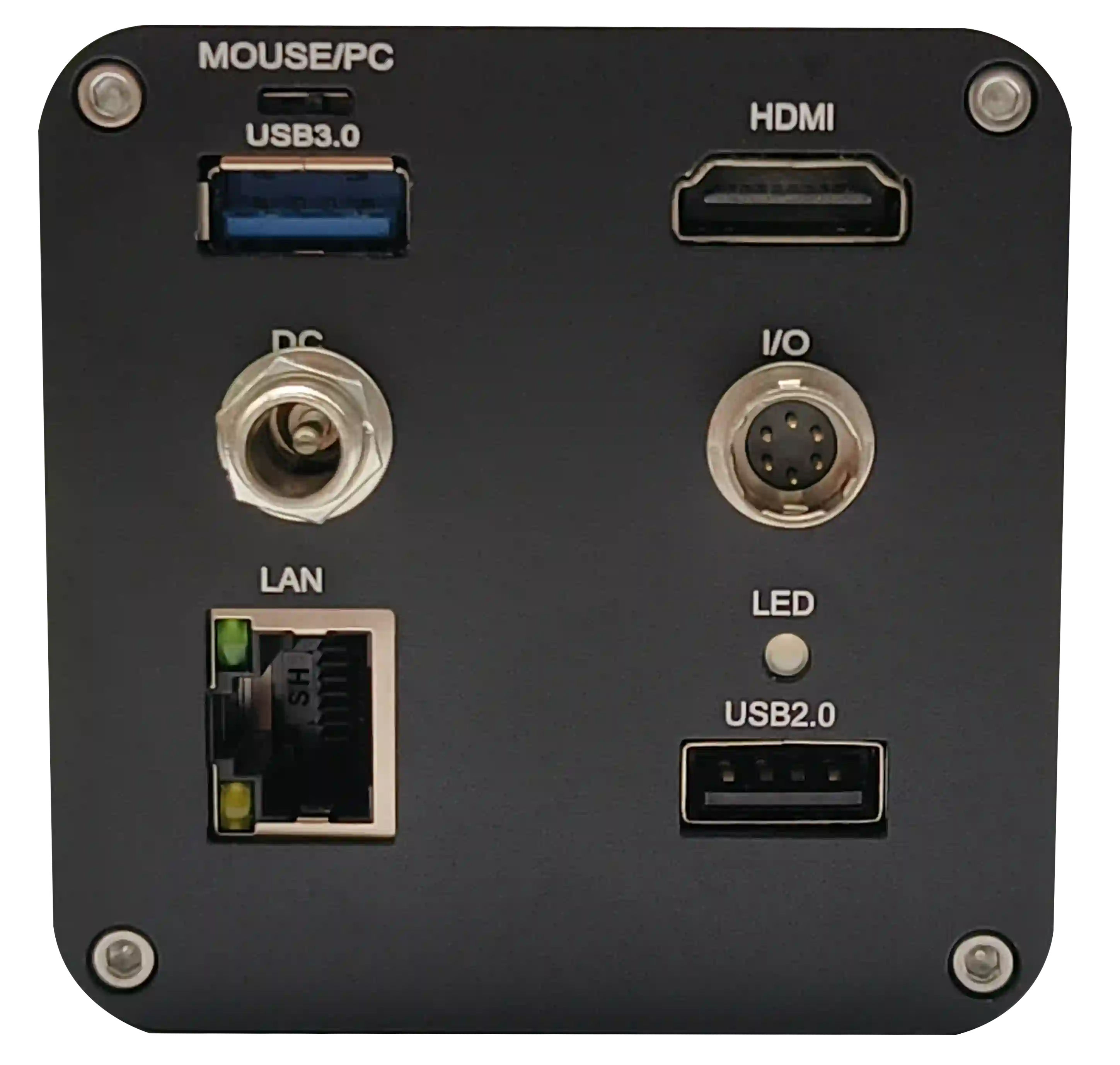

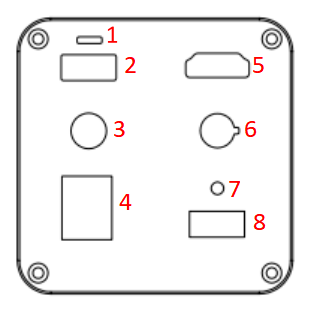

Introduction To Camera Interface

I/O Needle Foot Definition Table

Camera Matching Device

1.Front-end component: C-Mount Microscope or C-Mount Lens.

2.Back-end component: With HDMI support 4K@60Hz、4K@50Hz、1080P @ 60Hz or 1080P @ 50Hz display.

Camera Installation Information

1、Connect C313 camera with C-mount lens.

2、Use HDMI/USB /Netting Twine cable to connect the monitor with camera.

3、Connect mouse.

4、Use appropriate power supply.

Technical Specifications

Product Model	C313
Focus Mode	Auto Focus
Image Sensor	Colour CMOS
Pixel	8 M pixels
Pixel Size	1/1.8〞
Menu	All-digital UI design
Method of Operation	Mouse/PC
Lens Interface	C-type
Power DC	DC12V
Output Method	HDMI/USB/LAN
White Balance	Auto / Manual
Exposure	Auto / Manual
Display Frame Rate	HDMI:4K@60fps/1080p@60fps USB:4K@30fps/1080p@60fps LAN:4K@30fps/1080p@60fps
Scanning Method	Line by Line Scanning

Shutter Speed	1/30s～1/10000s
Operating Temperature	0℃～50℃
Saving Function	Support USB disk storage/PC storage/camera internal storage

Precautions

1、Use only DC12V power supply。

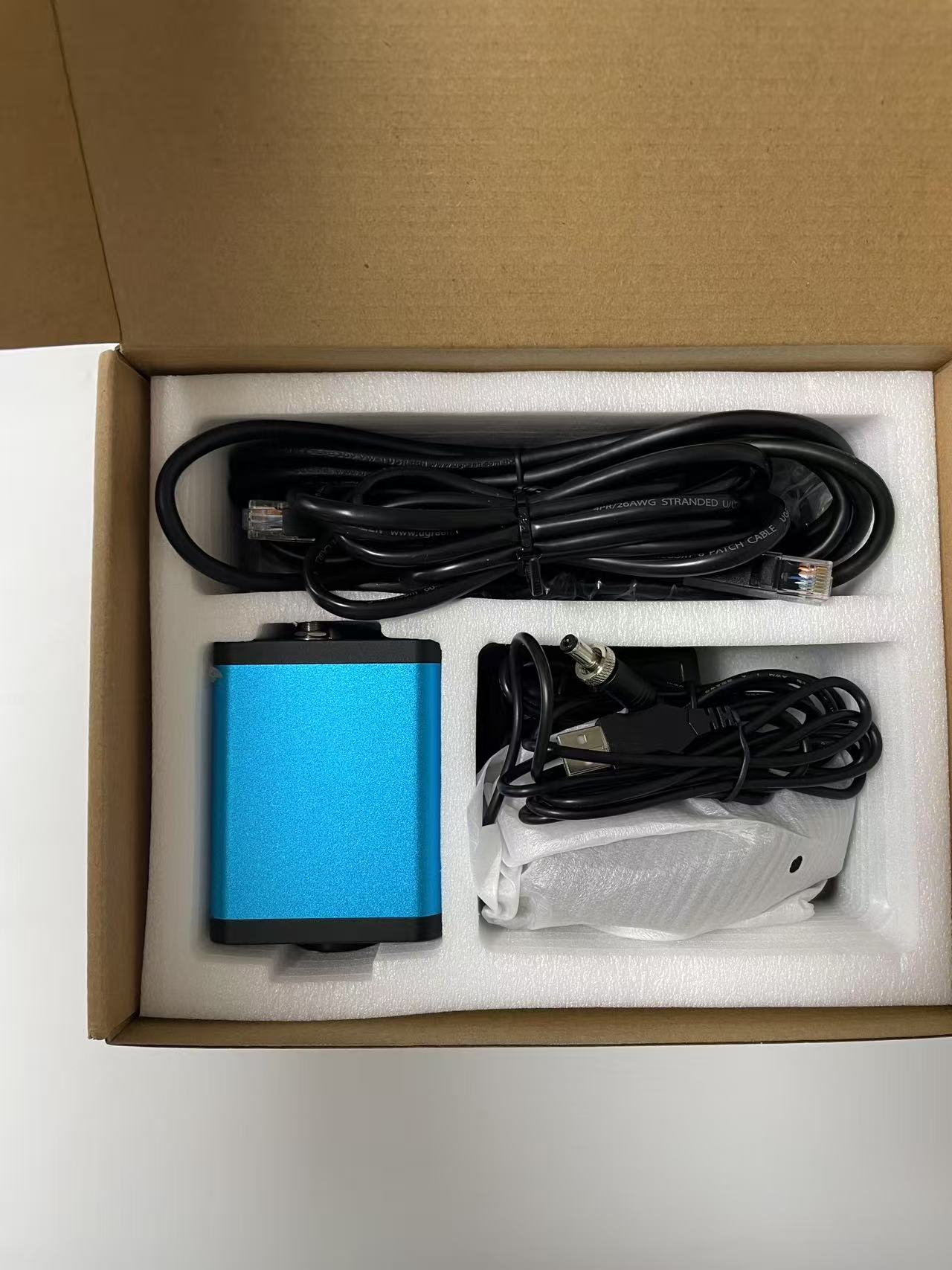

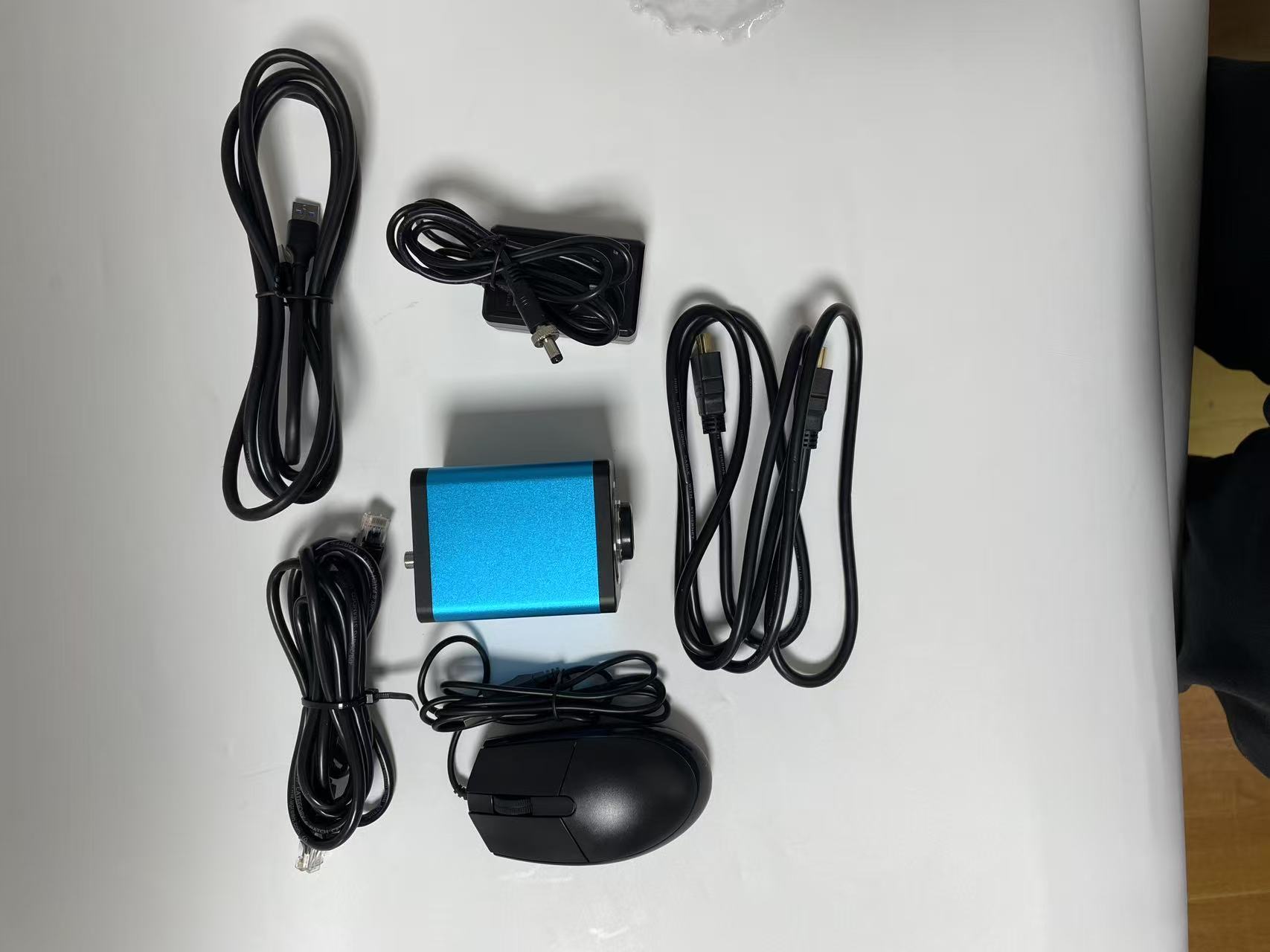

*All accessories as per the material subjects.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!

Key words:

Get A Quote

Note: Please leave your email address, our professionals will contact you as soon as possible!

Signal	I/O Type	Instruction
12V	Input	+12Vdirect-current main
Opt-Iso In	Input	Light-coupled isolation input
GPIO	Input or Output	Can be configured as an input or an output
Opt-Iso Out	Output	Optical coupling isolation output
I/O Ground	Input	Signal ground
GND	Input	Power ground
