NW-HFD41J

sensor

1/4" CMOS

Camera type

black and white

Pixel size

5umx5um

Effective pixels

300,000

Resolution @ frame

rate

640X512@241FPS

Output pixel width

8b it

Exposure mode

Frame exposure

sensitivity

121mV 1/30s

GP IO

1 trigger input, 1 flash output; 1 GP I input, 1 GPO output, 1 non-isolated bidirectional IO

Maximum gain (mu-

ltiplicity)

126

Exposure time range (ms)

0.007~2150.4

AD width

12b it

Frame cache

256M Bytes

User-defined data area

2K Bytes

Video output format

Mono 10b it

Visual standards

protocol

GigE Vis ion V1.2、Gen ICam

Camera interface

C mouth

joggle

Gigabit networks

Power supply

12V

power

<12W

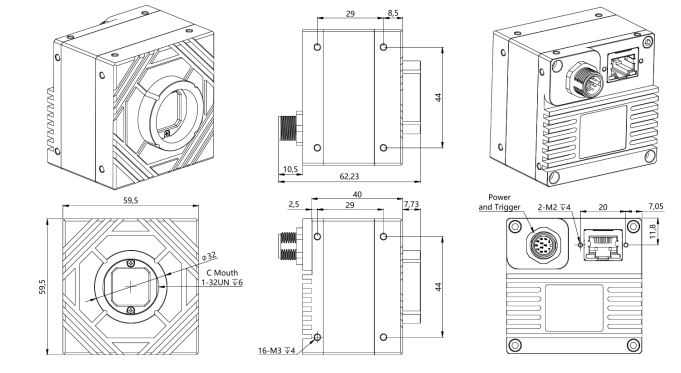

outline dimension

59.5X59.5X40mm above does not include the lens holder and rear shell interface)

weight

<250g

refrigeration system

Semiconductor refrigeration can cool the ambient temperature difference of 20 degrees

working temperat-

ure

0 ~40 degrees

Working humidity

20 ~80% (no condensation)

storage temperature

-30 ~60 degrees

Storage humidity

20 ~95% (no condensation)

operating system

WinXP, WIN7/8/10 32&64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system

drivers

Directshow component, Halcon dedicated component, Labview dedicated driver, OCX component, TWAIN

component

Programming lan-

guage packages

C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java

Other functions

Supports ROI customization resolution, contrast and gamma adjustment, saturation adjustment, white balance

correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D

noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc
