The MSS-3DM3159-BQ 3D laser profiler uses the principle of triangulation and built-in high-precision sub-pixel image processing algorithms to process the continuously acquired profile data in real time to obtain the 3D shape of the target and achieve high-precision measurements and inspections.The 3D laser profiler's full-width scanning rate can reach up to 10kHz, which dramatically improves the inspection/measurement speed and better meets the needs of high- speed production lines. production line. Adopting self-developed special laser, large-diameter Schaum lens, imaging chip with up to 2MP pixels and advanced intelligent imaging algorithms, it can better cope with reflections, multiple reflections and other complex situations, and has stronger anti-interference ability. Application Industry: It is suitable for measured objects with larger sizes, such as railway tracks and auto parts.

Commodity name： MSS-3DM3159-BQ-EN CATALOG

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Product Features:

Ultra-large measuring range, ultra-high scanning rate, ultra- high precision measurement.

Adopt Sham structure to increase the Z-direction (depth)

measurement range and maintain clear imaging over the full range.

Adopt high frame rate high resolution CMOS, each contour contains up to 2048 measurement points, contour scanning speed up to 10kHz.

Adopt 638nm red laser with narrow band filter, HDR function effectively solves the interference caused by different

reflectivity and different colours.

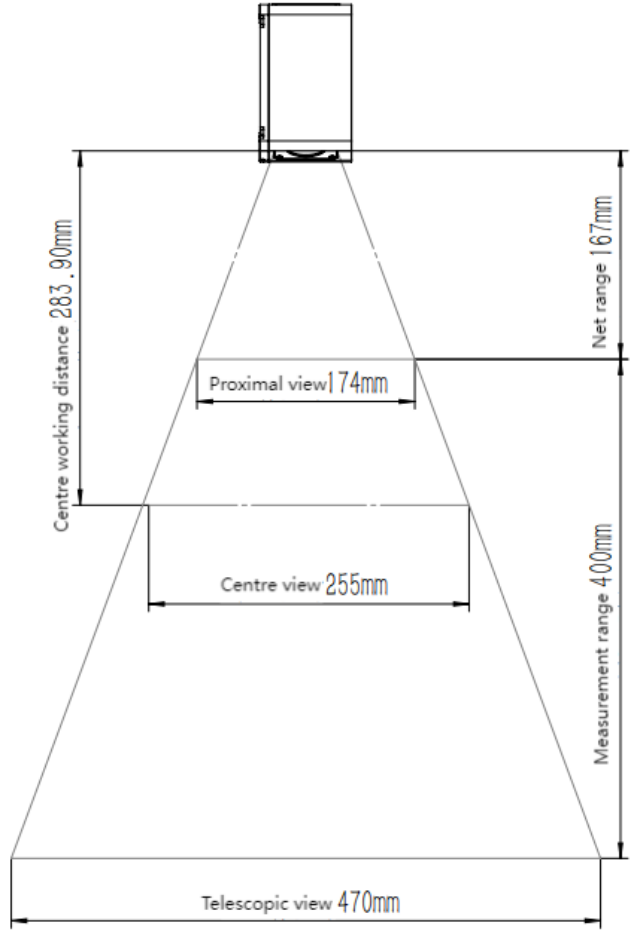

Field of View:

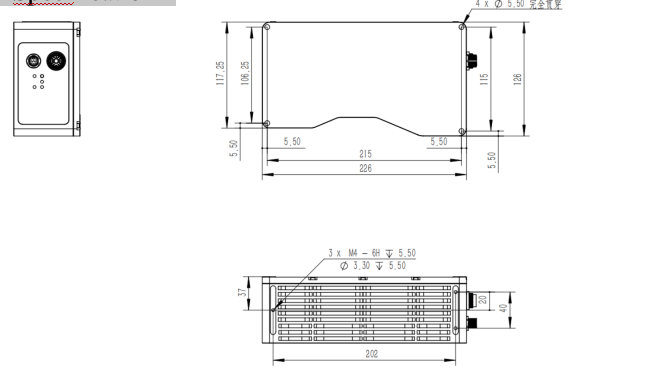

Mechanical Speciﬁcation:

unit:mm

TECHNICAL PARAMETER

	MSS-3DM3159-BQ
Data points/Outlines	2048
Frame	2000fps(full frame), Max frame rate 10K (ROI)
Clearance Distance	167mm
Z-axis measurement range	400mm
Field of view	173.7mm~470mm
Linearity Z(± of MR)	±0.03%
Z-axis reduplication accuracy	3um
X-axis resolution	84.85~241.89um
Z-axis resolution	1.5um
Data interface	Gigabit Ethernet
Input	Single-ended trigger, encoder trigger, laser safety enabled
Laser source	Red semiconductor laser
Laser wavelength	638nm
Laser grade	Class 3B
Laser power	40mW
Input power supply	+12V~+24V DC±10%；1A Max
Power	13W
Case protection class	IP67
Ambient light	Incandescent lamp: less than 10000 lux
Working temperature	-20℃~+45℃
Storage temperature	-30℃~+70℃
Humidity	25-85%（No Condensation）
Vibration	Each direction :1.5mm amplitude,3 hours,10-55Hzfrequency (IEC 60068-2-6)
Impact resistance	Each direction: 15G(IEC 60068-2-27)
Materials	Aluminium alloy
Size	226mm x 126mm x73.5mm(without lens)
Weight	≈1.8KG

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
