Order code

Sensor size (mm)

Pixels (um)

G photosensitivity dark current

Sensor Output (FPS/Resolution)

Sample averaging

Exposure Time (ms)

TP4K8MPA

IMX678(C)

1/1.8"(7.68x4.32)

2.0x2.0

3541mv with 1/30s 0.15mv with 1/30s

60@3840*2160

1x1

0.019~1000

TP4K8MPB

IMX585(C)

1/1.2"(11.14x6.26)

2.9x2.9

5970mv with 1/30s 0.13mv with 1/30s

60@3840*2160

1x1

0.048~1000

Camera model

Video recording (FPS/resolution)

HDMI 2.0 (FPS/resolution)

USB3.0 (FPS/resolution)

NETWORK (FPS/Resolution)

TP4K8MPA

60@3840*2160 60@1920*1080 60@1280*720

60@3840*2160 60@1920*1080

30@3840*2160 45@2688*1512 60@1920*1080

30@3840*2160 60@1920*1080 60@1280*720

TP4K8MPB

60@3840*2160 60@1920*1080 60@1280*720

60@3840*2160 60@1920*1080

30@3840*2160 45@2688*1512 60@1920*1080

30@3840*2160 60@1920*1080 60@1280*720

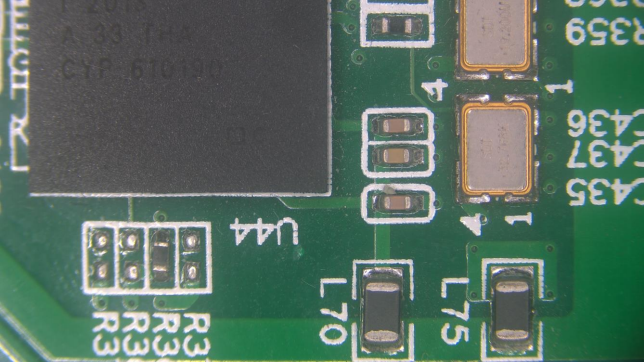

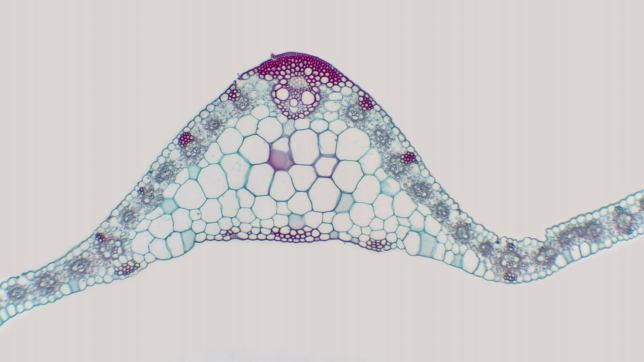

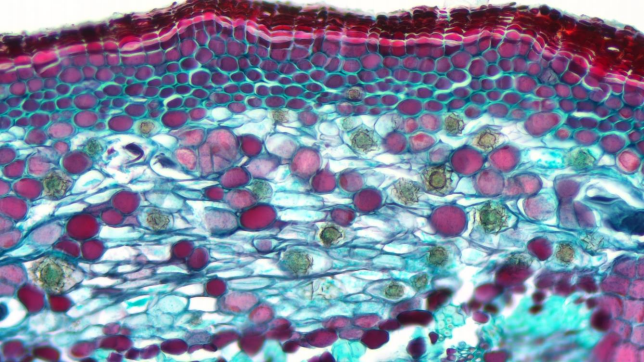

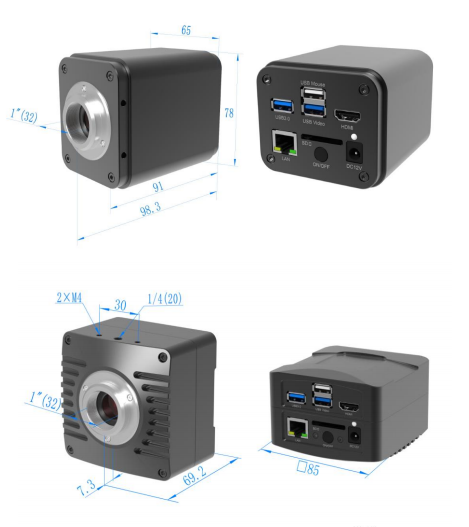

Physical interface and key

Functional description

USB Mouse

USB mouse interface for control of the built-in XCamView software (flat and unlabeled)

Connect the USB voice control module to realize the real-time control of camera shooting, video recording, freezing and other operations by voice commands

USB3.0

Connect U disk to realize video and image storage function

Connect the 5G WiFi adapter module to realize wireless video image transmission, and connect the USB microphone to realize audio and video recording

Connect the USB voice control module to realize the real-time control of camera shooting, video recording, freezing and other operations by voice commands

USB Video

Connect computer USB 3.0 interface to realize video image transmission

HDMI

HDMI 2.0 compliant for 4K/1080P video image output with automatic resolution switching for display

LAN

The Ethernet interface is connected with a router/switch and is used for network transmission of video images

SD

SD card slot, compliant with SDIO 3.0 specification, for storage of captured video and images

ON/OFF

Power switch

LED

LED status indicator

DC12V

12V/1A power Jack

Video/data interface

Functional description

HDMI interface

Support HDMI 2.0 protocol; 60fps @ 4K or 60fps @ 1080P

Ethernet interface

Support H264 encoding video image output; support real-time switching of resolution (4K/1080P/720P)

Support DHCP acquisition and manual network configuration; support unicast/multicast configuration

WiFi interface

Connect the 5G WiFi adapter module through USB3.0 interface, support wireless AP and STA modes, and transmit H264 encoded images in real time

USB Video connector

Transfer H264/MJPEG-encoded images in real time by connecting to a PC via USB Video

Other

Description of video image recording capture, image processing and camera control functions

Video recording

Video format: 8M (3840 * 2160) video files encoded by MP4 package H264/H265

Storage frame rate: 60fps in low latency mode, 30fps in WDR mode

Image capture

8 M (3840 * 2160) JPEG, TIFF or RAW format, storage device with SD card or U disk (default SD card priority, priority can be modified in settings)

Measurement information storage

Captured images support hierarchical and converged storage of measurement information and image content

ISP functionality

Support exposure time/gain adjustment (auto/manual exposure), white balance (manual/auto/ROI white balance), sharpening, 3D noise reduction, saturation, Gamma, contrast, brightness, hue, 50HZ/60HZ anti-flicker, color to gray and other functions

Image assist function

Zoom in/out (up to 10x digital magnification), mirror/flip, freeze, depth of field synthesis, stitching, reticle, graphic overlay, picture-in-picture, browsing (including picture browsing, recorded video playback, picture video comparison, picture comparison, picture depth of field synthesis, picture stitching, image processing), and rich image measurement functions

Embedded RTC

Precise time control on board

Restore the camera parameters to the factory settings

Restore the camera parameters to the factory settings

Multilingual support

English/Simplified Chinese/Traditional Chinese/Korean/Thai/French/German/Spanish/Japanese/Italian/Russian/Dutch/Portuguese

Software function and environment in case of Network/USB Video output

White balance

Classic auto, manual, and ROI white balance

Color technology

Ultra-Fine color engine and techniques such as 3D noise reduction and local dynamic range adjustment

Capture/Control SDK

Standard Interface API (Windows/Linux/Mac)

Recording mechanism

Still image or video

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit) OSx(Mac OS X)

Linux

Basic PC requirements

CPU: Intel Core2 2.8GHz or higher

Memory: 4GB or more

USB interface: USB2.0 interface or higher

Display: 19 "or larger

CD-ROM

Camera working environment

Operating Temperature/Degrees Celsius

-10~ 50

Storage temperature/° C

-20~ 60

Operating humidity

30~80%RH

Keep the humidity

10~60%RH

Power source

DC 12V/1A Adapter

Standard packing list

A

Camera box specification: L: 25.5cm W: 17.0 cm H: 9.0 cm (1pcs, 1.7kg/box)

B

One TP4K series camera (one of two different models, please specify)

C

Power adapter: input: AC 100 ~ 240V 50Hz/60Hz, output: DC 12V 1A

American standard: model: POWER-U-12V1A (MSA-C1000IC12.0-12H-US)

European standard: POWER-E-12V1A (MSA-C10001C12.0-12H-DE)

D

USB mouse

E

HDMI 2.0 Cable

F

USB3.0 A male A male gold-plated data cable/2.0 m

G

CD (Drives and applications, Ø 12 cm)

Optional accessories

H

SD card (above 16g, Class 10)

I

USB flash drive

J

Adjustable-focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one according to your camera and microscope)

108001/AMA037 108002/AMA050 108003/AMA075

K

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one according to your camera and microscope)

108005/FMA037 108006/FMA050 108007/FMA075

Note: For J and K options, please confirm your camera model (C interface, microscope camera or telescope camera) first. The engineer of Atlas Optoelectronics will help you select the appropriate microscope or telescope adapter according to your application.

L

1080 15 (Dia. 23.2mm to 30.0mm ring)/for 30 mm diameter eyepiece barrel adapter ring

M

1080 16 (Dia. 23.2mm to 30.5mm ring)/for 30.5mm diameter eyepiece tube adapter ring

N

Micrometer

106011/TS-M1(X=0.01mm/100Div.)；

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

O

USB interface wireless network card adapter (in WiFi mode, USB WiFi adapter is required to operate the camera), different models, the shape will be different

P

Network cable
