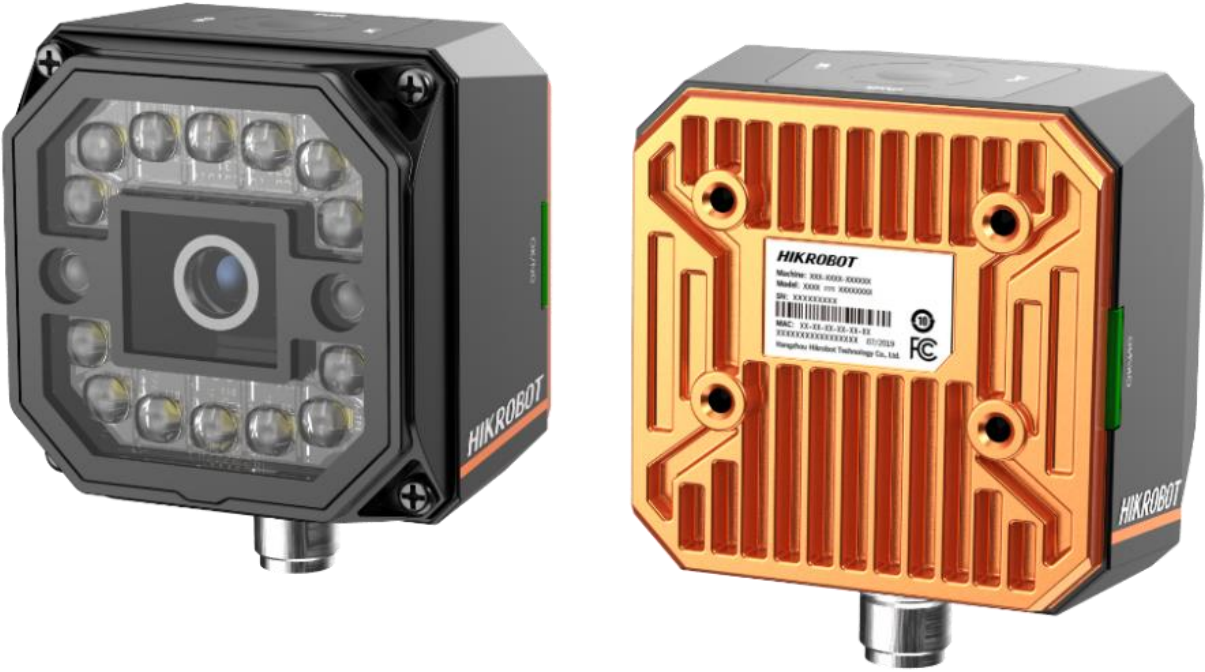

MSS-C-MV-SC3016C
- Commodity name： MSS-C-MV-SC3016C
- Description
-
Welcome to Shanghai Mengsheng Sheng International Trade
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~Key Features
l Adopts embedded hardware platform for high- speed image processing.
l Adopts built-in positioning and measurement algorithms to detect object’s existence, quantity, location, etc.
l Multiple IO interfaces for input and output signals.
l Multiple indicators for displaying device status.
l Adopts light source to ensure uniform brightness in the illuminated area.
l Supports multiple communication protocols, including Serial Port, TCP, UDP, FTP, Profinet, Modbus, etc.
Available Model
l 6 mm focal length:
MV-SC3016C-06M-WBN
l 12.4 mm focal length:
MV-SC3016C-12M-WBN
l 14.8 mm focal length:
MV-SC3016C-15M-WBN
Applicable Industry
Consumer electronics, food and medical industry, automobile, etc.

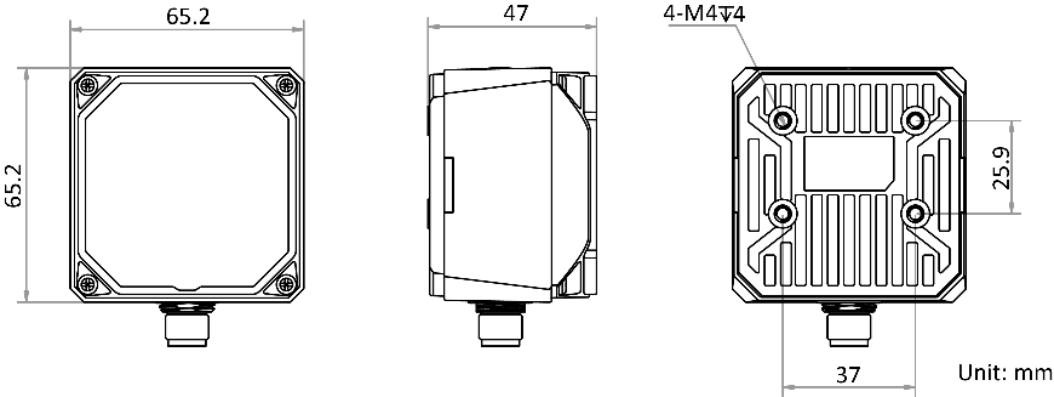

Dimension
Specification
Model
MV-SC3016C-06M-WBN
MV-SC3016C-12M-WBN
MV-SC3016C-15M-WBN
Tool
Vision tool
l Count: Pattern count, spot count, edge count
l Defect detection: Exception detection
l Existence: Pattern existence, spot existence, edge existence, circle existence, line existence
l Location: Match location, match calibration
l Logic tool: If module, condition judge, logic judge, combination judge, character comparison, calculator
l Measurement: Color size, L2L angle, diameter measurement, brightness average value, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurement
l Recognition: OCR, color contrast, code recognition, color recognition
Solution capacity
Supports solution importing and exporting, up to 32 solutions and 40 modules can be stored.
Communication protocol
Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP
Camera
Sensor type
CMOS, global shutter
Pixel size
3.45 µm × 3.45 µm
Sensor size
1/2.9"
Resolution
1408 × 1024
Max. frame rate
60 fps
Dynamic range
71.4 dB
SNR
41 dB
Gain
0 dB to 15 dB
Exposure time
16 μs to 1 sec
Pixel format
RGB 8, Mono 8
Mono/color
Color
Electrical features
Data interface
Fast Ethernet
Digital I/O
17-pin M12 connector provides power, Ethernet, digital I/O, and serial port: Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and external button input × 1. Output signal can be set as NPN or PNP.
Power supply
24 VDC
power consumption
Approx. 48 W@24 VDC
Mechanical
Lens mount
M12-mount, mechanical autofocus lens
Focal length
6 mm (0.2")
12.4 mm (0.5")
14.8 mm (0.6")
Lens cap
Transparent lens cap. Polarization or infrared filter lens cap is optional.
Light source
White light by default. Red or blue is optional.
Indicator
Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
Dimension
65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Weight
Approx. 280 g (0.6 lb.)
Ingress protection
IP67 (under proper installation of lens and wiring)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity
20% to 95% RH, non-condensing
General
Client software
SCMVS
Certification
CE, FCC, KC

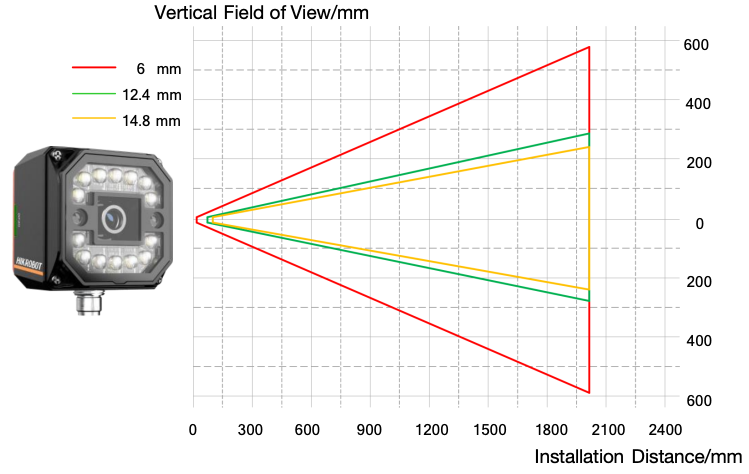

Detection Range
Lens focal length
Installation distance
Field of view
Single pixel accuracy
6 mm (0.2")
5 mm (0.2")
4.05 mm × 2.94 mm (0.2" × 0.1")
0.003 mm
2000 mm (78.7")
1619.20 mm × 1177.60 mm
(63.7" × 46.4")
1.150 mm
12.4 mm (0.5")
70 mm (2.8")
27.42 mm × 19.94 mm (1.1" × 0.8")
0.019 mm
2000 mm (78.7")
783.48 mm × 569.81 mm (30.8" × 22.4")
0.556 mm
14.8 mm (0.6")
80 mm (3.1")
26.26 mm × 19.10 mm (1.0" × 0.8")
0.019 mm
2000 mm (78.7")
656.43 mm × 477.41 mm (25.8" × 18.8")
0.466 mm
