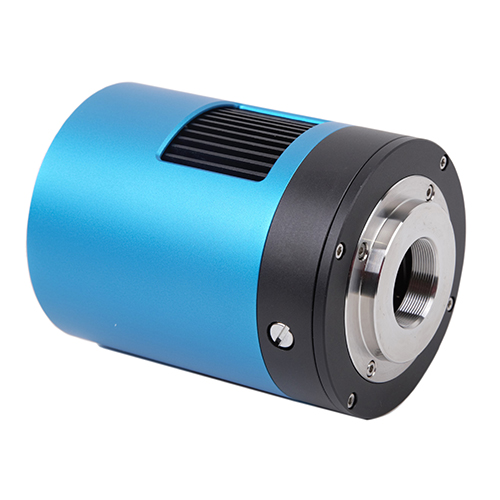

MSS-C-NUS3CMOS Atlas Refrigeration Camera

The Basic Characteristic of NUS3CMOS Series NUS3CMOS series camera adopts SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate. With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed. NUS3CMOS series comes with advanced video & image processing application ToupView/ToupLite; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The NUS3CMOS series can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
  • Commodity name： MSS-C-NUS3CMOS Atlas Refrigeration Camera

Category:

Microscope

Email:

shmss@mss-tech.cn

Get Quote
Also Like
  • Description
  • Welcome to Shanghai Mengsheng Sheng International Trade
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

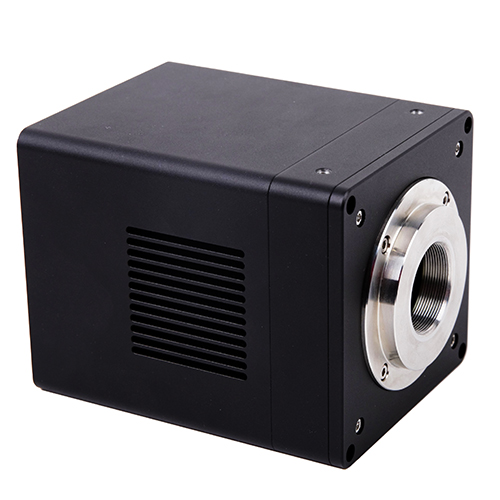

    NUS3CMOS Series (Cylinder or Square Housing)

    The basic characteristic of NUS3CMOS series can be summarized as follows:

    • Standard C-Mount camera with SONY Exmor CMOS sensors;
    • Two-stage TE-cooling with controllable electric fan;
    • Sensor chip cooling up to 42°C below ambient temperature;
    • Working temperature can be regulated to specified temperature in 5 minutes;
    • Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
    • IR-CUT/AR coated windows;
    • Up to 1-hour long time exposure;
    • USB3.0 5Gbit/second interface ensuring high speed data transmission;
    • Ultra-Fine color engine with perfect color reproduction capability;
    • With advanced video & image processing application ToupView/ToupLite;
    • Support both video and trigger modes;
    • Providing Windows/Linux/Mac OS multiple platforms SDK;
    • Native C/C++, C#/VB.NET, DirectShow, Twain control API;

    NUS3CMOS Series Datasheet (21)

    Order Code

    Sensor & Size(mm)

    Pixel(μm)

    G Sensitivity

    Dark Signal

    FPS/Resolution

    ADC

    Binning

    Exposure

    NUS3CMOS26000KPA
    NUSP126000A

    26M/IMX571(C, RS)
    1.8”(23.48x15.67)

    APS-C

    3.76 x3.76

    485mv with 1/30s
    0.07mv with 1/30s

    14@6224x4168

    37@3104x2084

    110@2064x1386

    8 Bit / 16 Bit

    1x1

    2x2

    3x3

    0.1ms~1h

    NUS3CMOS26000KMA
    NUSM126000A

    26M/IMX571(M, RS)
    1.8 “(23.48x15.67)

    APS-C

    3.76 x3.76

    871mv with 1/30s
    0.07mv with 1/30s

    14@6224x4168

    37@3104x2084

    110@2064x1386

    8 Bit / 16 Bit

    1x1

    2x2

    3x3

    0.1ms~1h

    C:Color; M:Monochrome;

    Other Specification for NUS3CMOS Series

    Spectral Range380-650nm(with IR-cut Filter)
    White BalanceROI White Balance/Manual Temp Tint Adjustment/NA for Monochromatic Sensor
    Color TechniqueUltra-Fine Color Engine/NA for Monochromatic Sensor
    Capture/Control SDKWindows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,C#/VB.NET,Python,Java,DirectShow,
    Twain,etc)
    Recording SystemStill Picture and Movie
    Cooling System*Two-stage TE-cooling System -45°℃ below Camera Body Temperature

    OperatingEnvironment

    Operating         Temperature(in
    Centidegree)    		-10~50
    Storage Temperature(in Centidegree)-20~60
    Operating Humidity30~80%RH
    Storage Humidity10~60%RH
    Power SupplyDC 5V over PC USB Port
    External Power Adapter for Cooling System,DC12V,3A

    SoftwareEnvironment

    Operating SystemMicrosoft®Windows XP/Vista/7/8/10/11(32&64 bit)
    OSx(Mac OSX)
    Linux
    PC RequirementsCPU:Equal to Intel Core22.8GHz or Higher
    Memory:2GB or More
    USB Port:USB3.0 High-speed Port
    Display:17”or Larger
    CD-ROM

    Dimension of NUS3CMOS Series

    The NUS3CMOS series body, made from tough, alloy with CNC technique, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR to block the IR light or protect the camera sensor. The fan‘s vibration is minimized to the low level to eliminate the vibration caused imaging blur. This design ensures a rugged, robust solution with an increased lifespan when compared to the other industrial camera solutions.

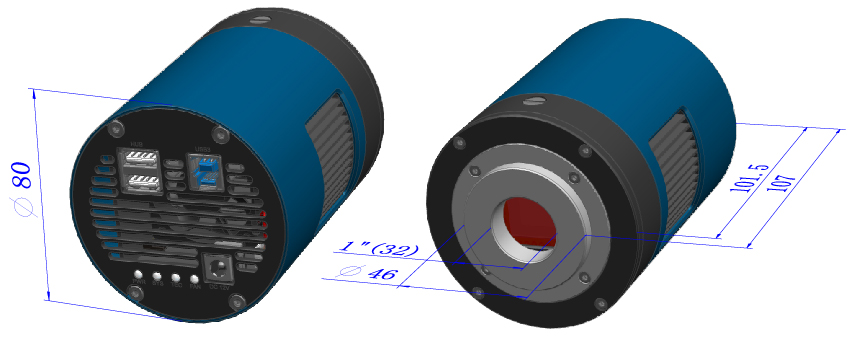

    Dimension of NUS3CMOS (Cylinder) Series

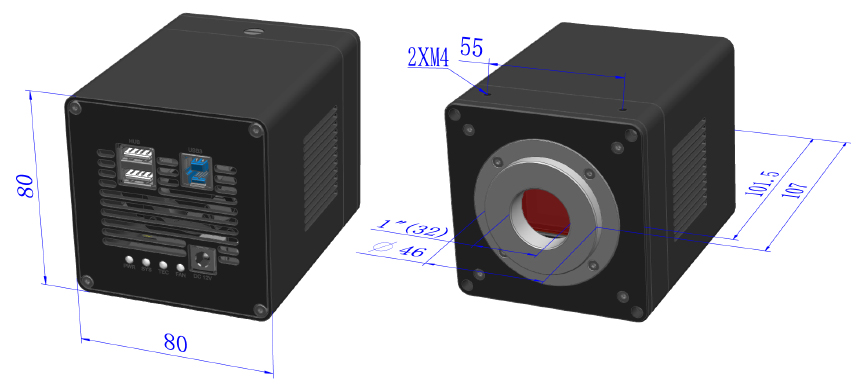

    Dimension of NUS3CMOS (Square) Series

    Packing Information for NUS3CMOS Series

    Packing Information of NUS3CMOS Series(Cylinder)

    Packing Information of NUS3CMOS Series(Square)

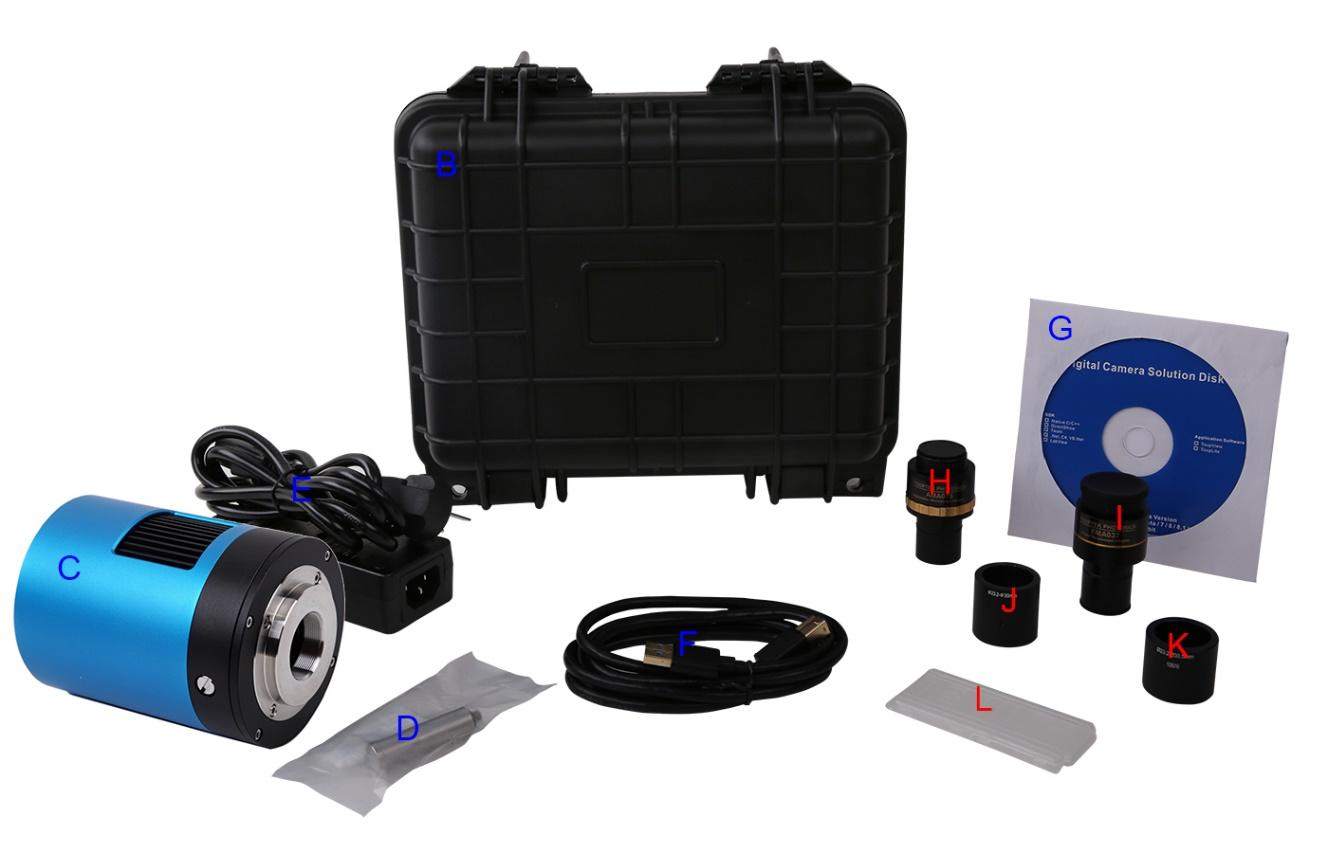

    Standard Package

    A

    Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo(TBD)

    B

    3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm(TBD)

    C

    One NUS3CMOS series camera(C-mount)

    D

    Drying tube and desiccant

    E

    Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC12 V 3A

    F

    High-Speed USB3.0 A male to B male gold-plated connectors cable /1.5m

    G

    CD (Driver & utilities software, Ø12cm)

    Optional Accessory

    H

    Adjustable lens adapter

    C-mount to Dia.23.2mm eyepiece tube
    (Please choose 1 of them for your microscope)

    108001/AMA037
    108002/AMA050
    108003/AMA075

    108004/AMA100

    C-Mount to Dia.31.75mm eyepiece tube
    (Please choose 1 of them for your telescope)

    108008/ATA037
    108009/ATA050
    108010/ATA075

    108011/ATA100

    I

    Fixed lens adapter

    C-mount to Dia.23.2mm eyepiece tube
    (Please choose 1 of them for your microscope)

    108005/FMA037
    108006/FMA050
    108007/FMA075

    108008/FMA100

    C-mount to Dia.31.75mm eyepiece tube
    (Please choose 1 of them for your telescope)

    108011/FTA037
    108012/FTA050
    108013/FTA075

    108014/FTA100

    Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

    J

    108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube

    K

    108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube

    L

    Calibration kit

    106011/TS-M1(X=0.01mm/100Div.);
    106012/TS-M2(X,Y=0.01mm/100Div.);
    106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

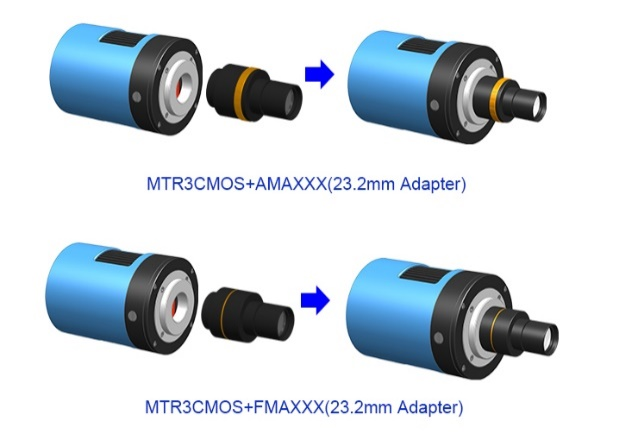

    Extension of NUS3CMOS Series with Microscope Adapter

    Extension


    C-mount Camera



    Machine vision; Medical imaging;
    Semiconductor equipment; Test instruments;
    Document scanners; 2D barcode readers;
    Web camera and security video;
    Microscope imaging;

    Microscope Camera



    Sample Photos Captured with NUS3CMOS Series

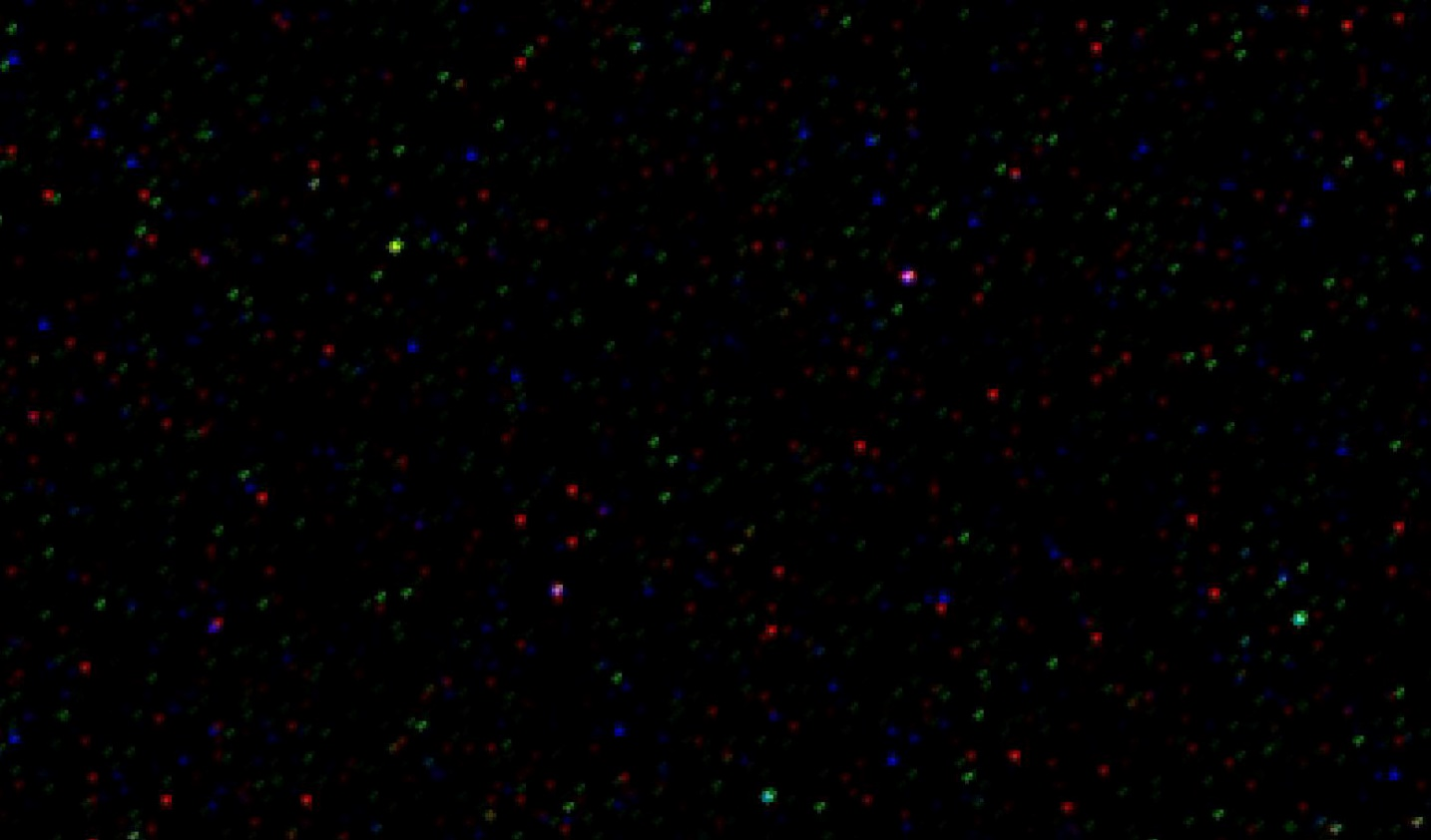

    Hot noise for the NUS3CMOS at Gain 20 , 600 second, 15 Centidegree

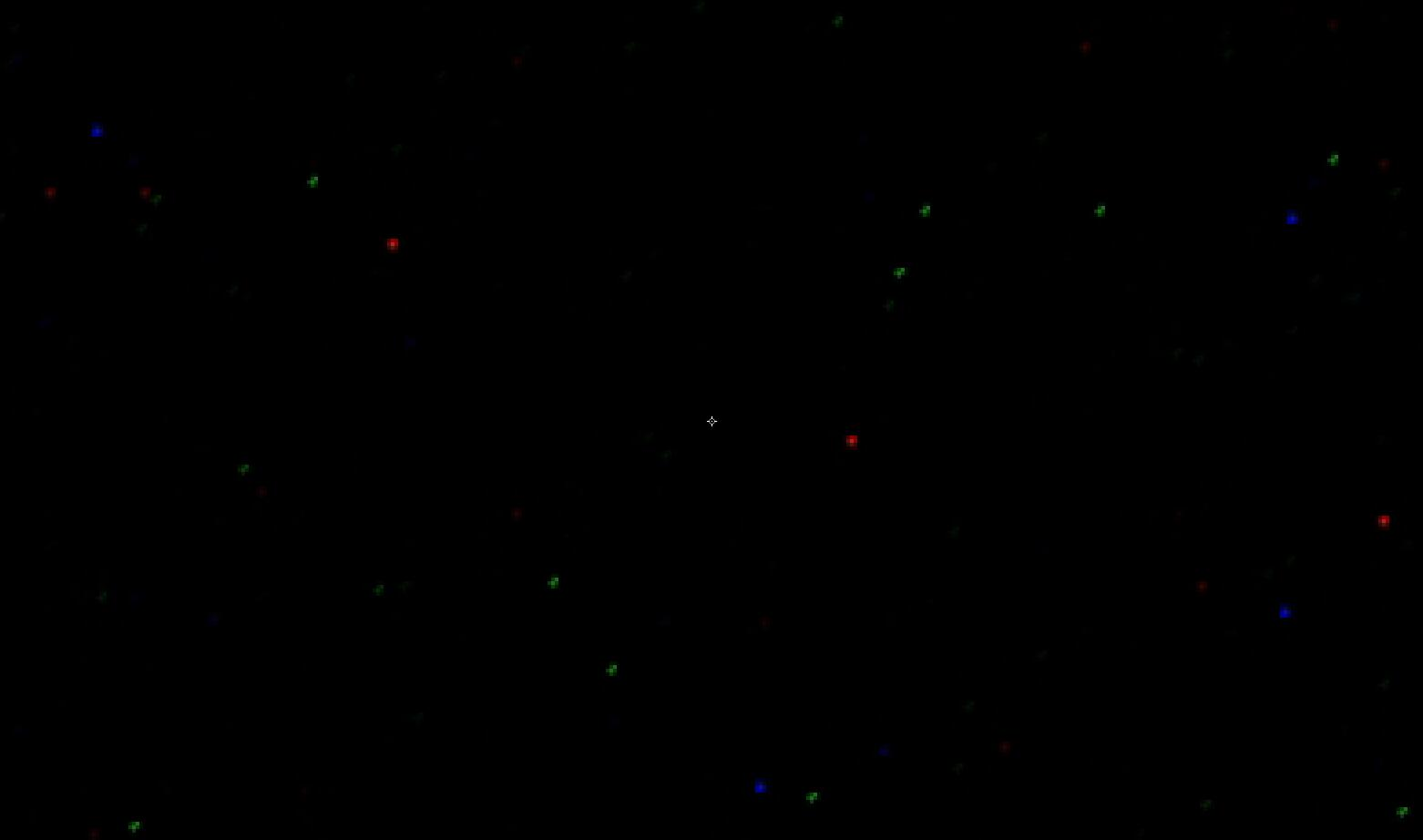

    Hot noise for the NUS3CMOS Gain 20, 600 second, minus 15 Centidegree

    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
