MSS-C-NW-HFD612N 1000nm

NW-HFD613N has infrared enhancement effect and high sensitivity. Widely used in photovoltaic, industrial testing, biomedical, scientific education and other fields. Application Industry: It is suitable for photovoltaic, industrial detection, biomedical, scientific education and other fields

Commodity name： MSS-C-NW-HFD612N 1000nm

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Product Features:

100 meters long-distance stable transmission .

Compatible with VISION standard, the free drive directly supports software such as Halcon and VisionPro .

Support external trigger and flash synchronization, up to 7 GP IO, all opto-isolated.

Support 8bit to 12bit lossless format output.

SDK supports Windows, Linux, Mac OS systems .

Unique data packet retransmission technology ensures reliable data transmission .

Excellent SDK, easy to use like a USB camera, plug and play. Support multiple cameras working at the same time, the

number is not limited, and can be networked arbitrarily.

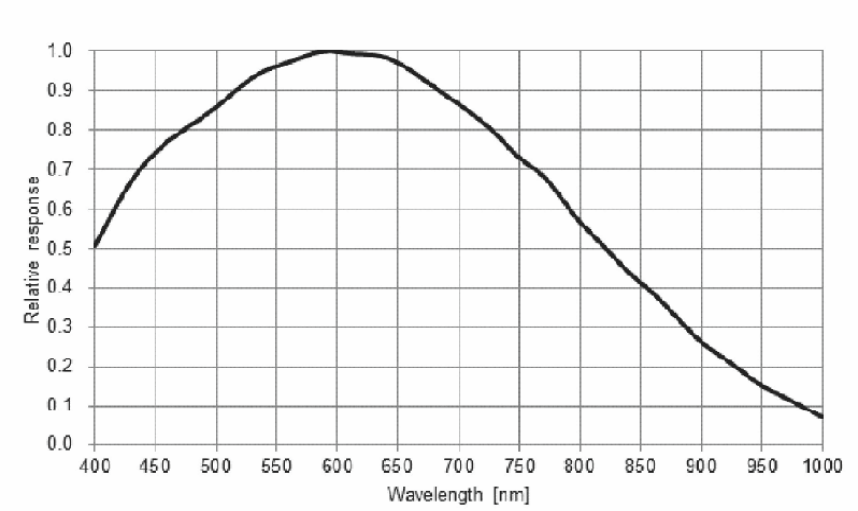

Spectral Response Curve:

NW-HFD613N

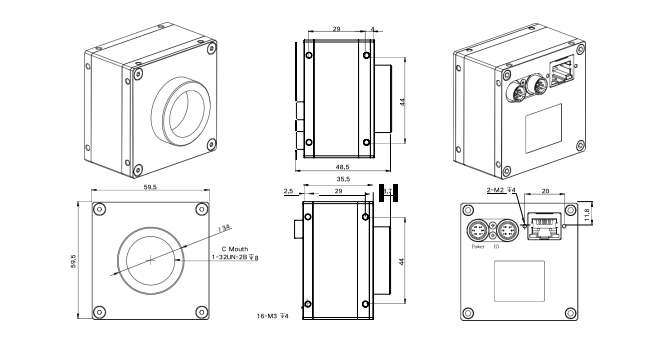

Mechanical Speciﬁcation:

unit:mm

TECHNICAL PARAMETER

Model Specifications	NW-HFD613N
Sensor	4/3" CMOS
Shutter type	Rolling shutter
Camera type	Mono
Pixel size	3.3umx3.3um
Effective pixels	5MP
Resolution @ frame rate	2640X1968MAX@21.25FPS
Exposure mode	Line exposure
GPIO	1 trigger input, 1 flash output; 2 GPI inputs and 3 GPO outputs
Sensitivity	1880 LSB
Output pixel width	12bit
AD width	12bit
Frame buffer	128M Bytes
Exposure time range	0.011~5767.2ms
Maximum gain (multiple)	160
User EEPROM	2K Bytes
Video output format	Mono 8/12bit
Visual standard protocol	GigE Vision 、GenICam
Lens interface	C mount
Port	Gigabit Network
Power supply	Supports 12-24V ±10%; typical value: 12V
Power	<5W
Boundary dimension	59.5x59.5x35.5(mm)(Lens base and rear shell interface are not included)
Weight	<250g
Working temperature	0~50℃
Working humidity	20~80%(No Condensation)
Storage temperature	-30~60℃
Storage humidity	20~95%(No Condensation)
Operating system	Windows XP/7/8/10/11 32-bit and 64-bit systems, Linux 32-bit and 64-bit systems, ARM Linux systems, Android systems, and MAC systems
Drive program	Support GigE Vision protocol software, DirectShow components, Halcon dedicated components, LabVIEW dedicated drivers, OCX components, and TWAIN components
Programming language	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.

Line Sequence Definition

Port	Pin number	Line color	Signal name	Signal description	Remarks
Port A	1	Green	GPO_ 1+/STRB_OUT+	GPO_ 1 positive end/flash output positive end	Default to flash output
	2	Yellow	GPO_ 1 -/STRB_OUT-	GPO_ 1 negative end/flash output negative end	Default to flash output
	3	White	GPI_ 1+/TRIG_ IN+	GPI_ 1 positive end/Trigger input positive end	Default to trigger input
	4	Brown	GPI_ 1 -/TRIG_ IN-	GPI_ 1 negative end/Trigger input negative terminal	Default to trigger input
	5	Red	DC12V+	Camera power input positive terminal
	6	Black	GND	Camera power input negative terminal
Port B	1	Green	GPO_ 2+	GPO_2 positive end output
	2	Yellow	GPO_ 3+	GPO_3 positive end output
	3	White	GPO_4+	GPO_4 positive end output
	4	Brown	GPI_ 2+	GPI_2 positive input
	5	Red	GPI_ 3+	GPI_3 positive input
	6	Black	IO_COM	GPIO common negative terminal

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
