NW-TVB342HDHN

The transmission speed of USB 3.0 is significantly improved compared to USB 2.0 and GigE cameras. With a transmission bandwidth of 5Gbps and high- speed sensors, a minimum transmission time of 1.2 milliseconds can be achieved for a 300000 pixel camera with 800FPS, and a 20 million pixel camera can also achieve up to 18FPS; Due to sufficient transmission bandwidth, a computer can be compatible with multiple cameras while ensuring high frame rates; The USB 3.0 series has low CPU usage, uses DMA transfer, and the 5Gbps data transfer part hardly occupies CPU resources. Application industry: Suitable for electronic 3C, automated semiconductors, logistics scanning, intelligent transportation, biomedicine, packaging printing

Commodity name： NW-TVB342HDHN

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Product Features：

1. The camera comes with a programmable IO

2. Support external triggered flash synchronization for taking photos

3. Supports 8-bit and 12 bit lossless format output

4. Fully compatible with the GIGE camera SDK and seamlessly replaceable

5. Multiple cameras on one computer can work

stably without disconnection or frame loss for a long time

6. Supports PC Linux system and ARM Linux system, can be integrated into embedded devices

7. Compatible with Vision protocol, seamlessly compatible with Halcon, VisionPro, Labview and other visual software

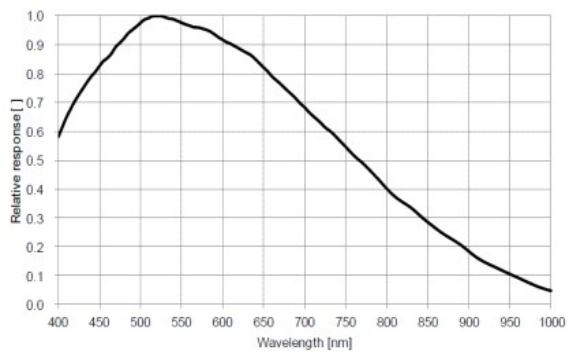

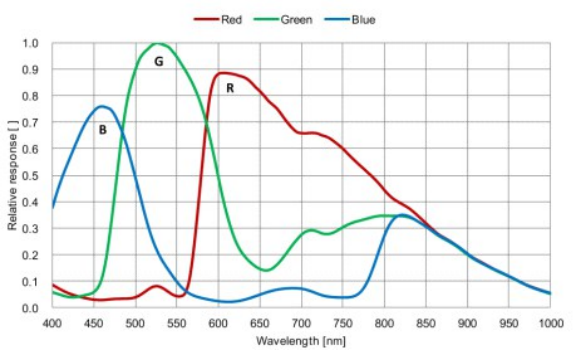

Spectral d iagram:

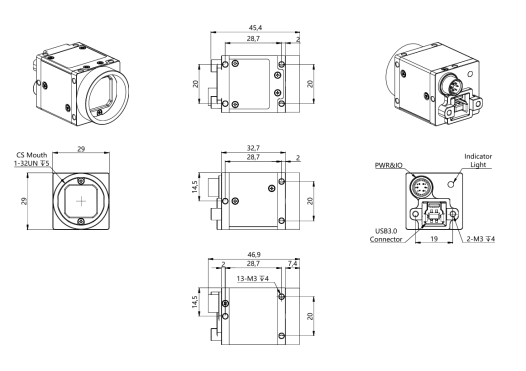

Mechanical specifications: Unit: Millimeter (mm)

Technical Parameter ： TECHNICAL PARAMETER

Model number and parameters	NW-TVB342HD		NW-TVB342HN
sensor	1/1.2"CMOS
Camera type	multicolour black and white
Pixel size	5.86umx5.86um
Effective pixels	Two million three hundred thousand
Resolution @ frame rate	1920x1200 WUXGA@40fps
sensitivity	1016mV 1/30s	825mV 1/30s
Exposure mode	Frame exposure
noise-signal ratio	44.8dB
dynamic range	73.6dB
AD width	12b it
Output pixel width	12b it
GP IO	1 opto-coupler isolated input, 1 opto-coupler isolated output, 1 non-isolated input and output
Maximum gain (multiplicity	250
Exposure time range (ms	0.020 1 ~42 1 12.8
Frame cache	128M Bytes
User-defined data area	2K Bytes
Video output format	Bayer RG 8bit/Bayer 12b it Mono 8bit/Mono 12b it
Visual standards protoco	l USB3Vis ion 1.0、Gen ICam
Camera interface	Port C is optional with CS
data interface	USB3.0 TYPE B
Power supply	5V, USB bus power supply
power	<3W
outline dimension	29X29X32.7mm (without lens base and rear housing interface)
weight	<75g
working temperature	0 ~50 degrees
Working humidity	20 ~80% (no condensation)
storage temperature	-30 ~60 degrees
Storage humidity	20 ~95% (no condensation)
operating system	WinXP, WIN7/8/10 32&64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system
drivers	Directshow component, Halcon dedicated component, Labview dedicated driver, OCX component, TWAIN component
Programming language packages	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions	Supports ROI customization of resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, and custom dead for any size Point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
